Overview:

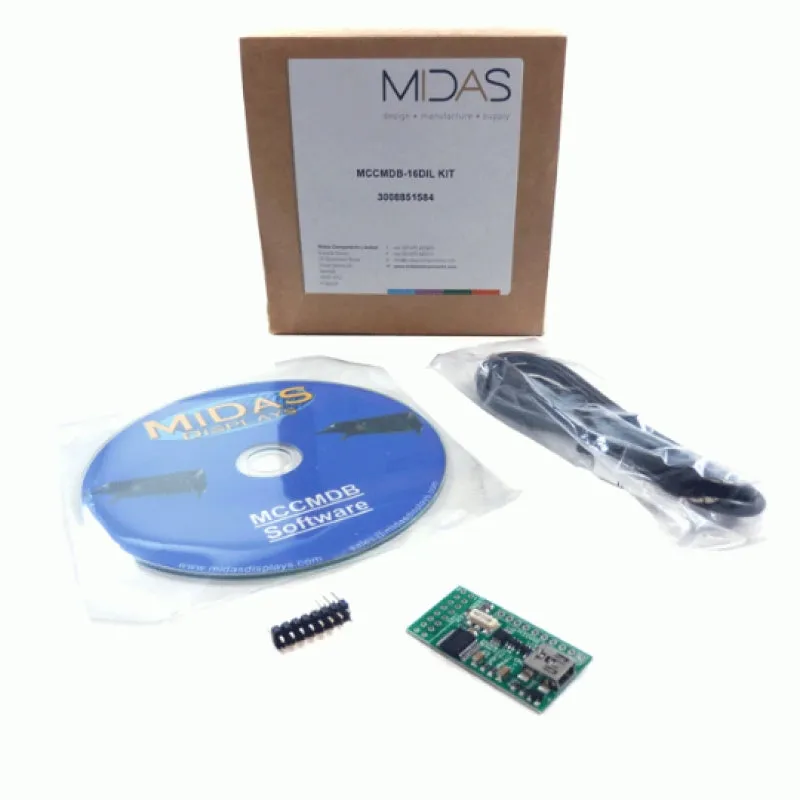

This Midas USB Interface Board MCCMDB-16DIL-KIT provides a user friendly USB interface for LCD and OLED character displays. The straightforward protocol allows full control of all the displays features with the addition of digital contrast adjustment, temperature measurement, LED backlight control and general purpose input output connections. Ideal for adding a display to your product or for exploring all the feature.

Features:

• Pin compatible with OLED / LCD 16 pin single in line (SIL/DIL) connectors.
• Powered form USB port or separate 5V supply.
• On board temperature measurement.
• On board digital LCD contrast voltage adjustment.
• On board digital LED backlight switch.
• On board LED backlight current limiting resistors.
• EEprom for configuration and general storage.
• Re-programmable via USB port or directly using Microchip ICSP.
• Two general purpose Input Output (IO) ports.
• Windows application for display evaluation.
