| Product Attribute | Attribute Value |
|---|---|
| Bezel | Nickel Plated Brass |
| Color | Red |
| Diameter, Lamp | 27⁄64 in. |
| Diameter, Mounting Hole | 1⁄2 in. |
| Dimensions | 15/16" H x 0.020" |
| Housing Material | White Nylon |
| Lamp Life | 25000 hr |
| Lamp Type | Neon |
| Length, Lead | 6 in. |
| Life | 25,000 hrs. |
| Life Hours | 25000 |
| Material, Lens | Polycarbonate |
| Mounting Hole Size | 0.5 in. |
| Mounting Type | Solder |
| Power Rating | 1⁄3 W |

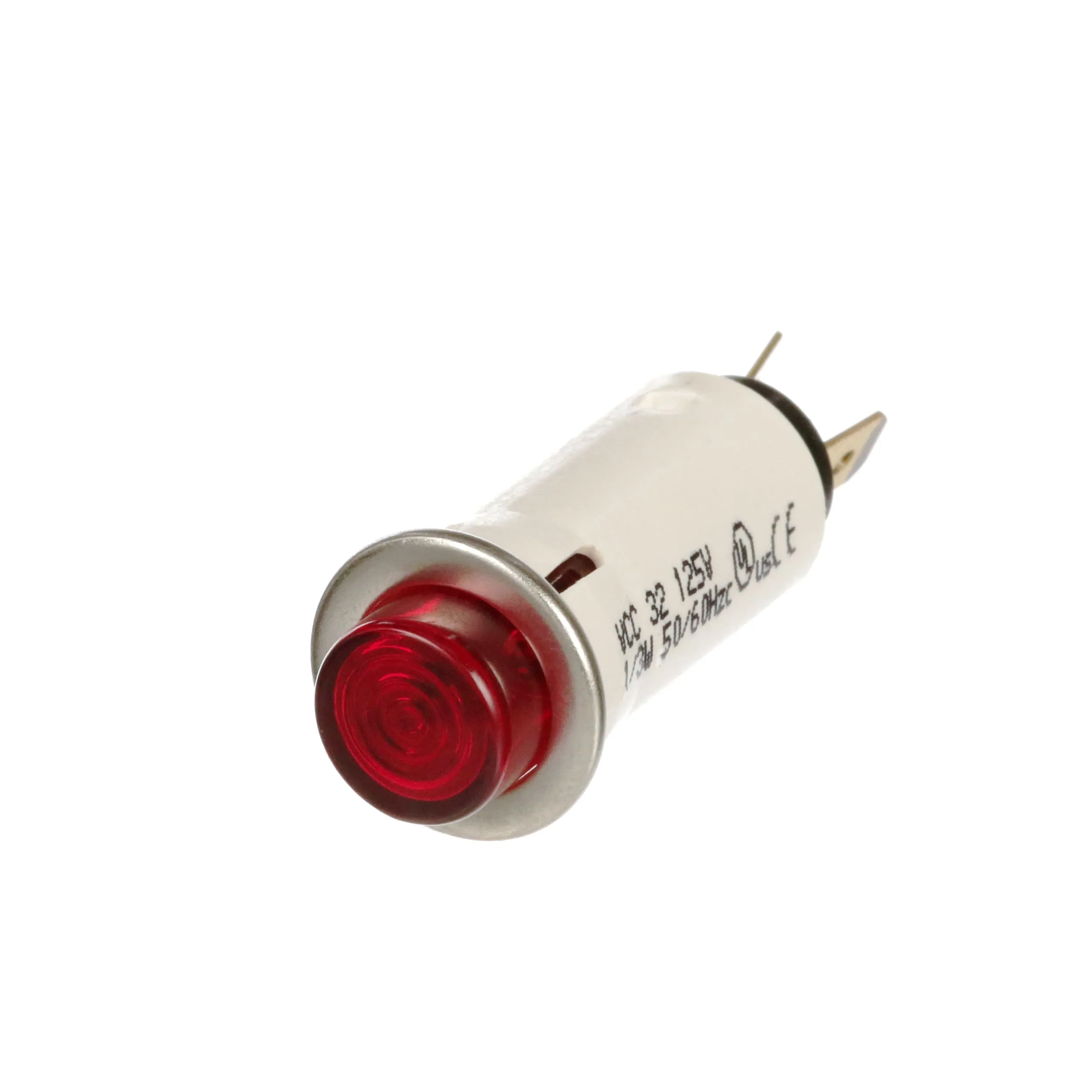

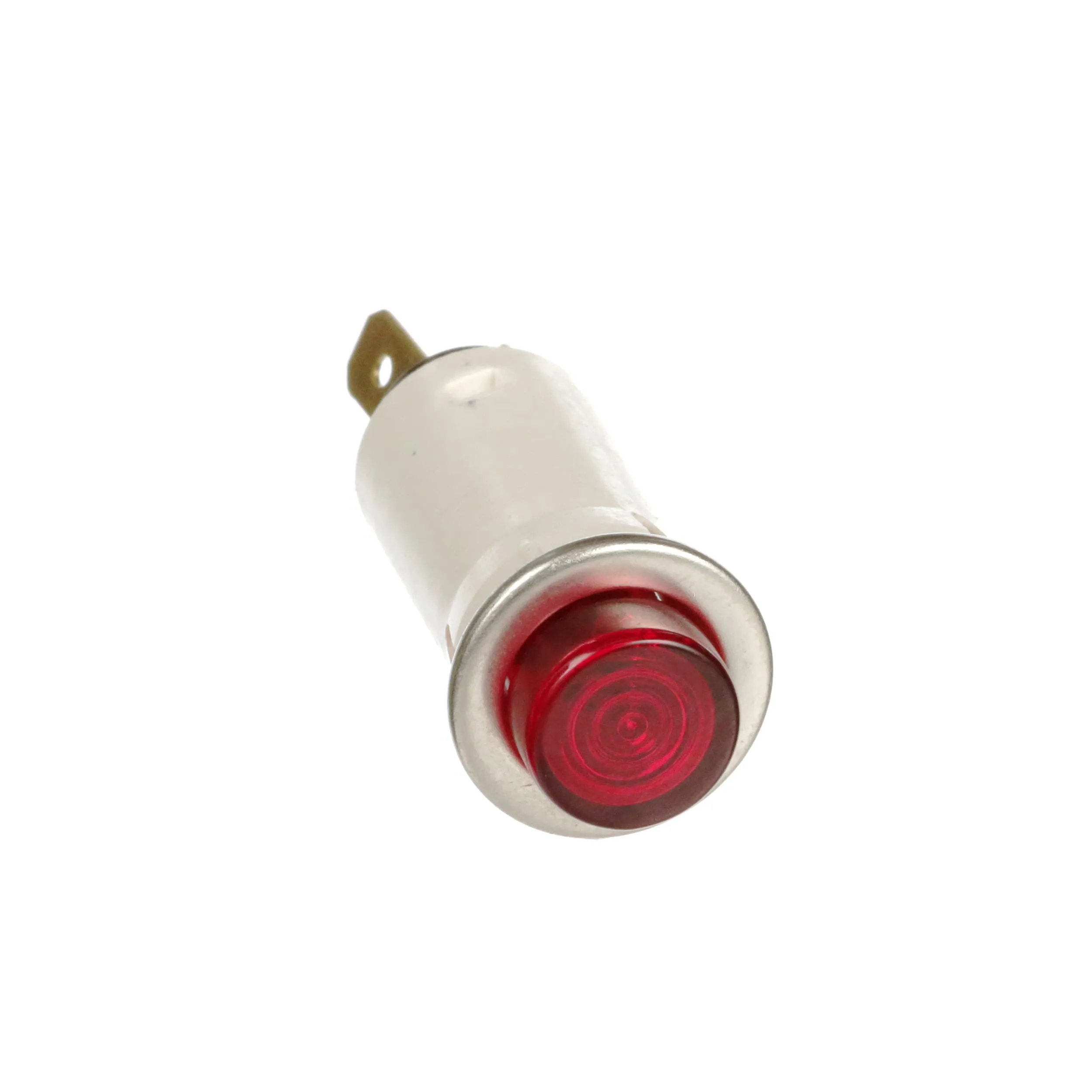

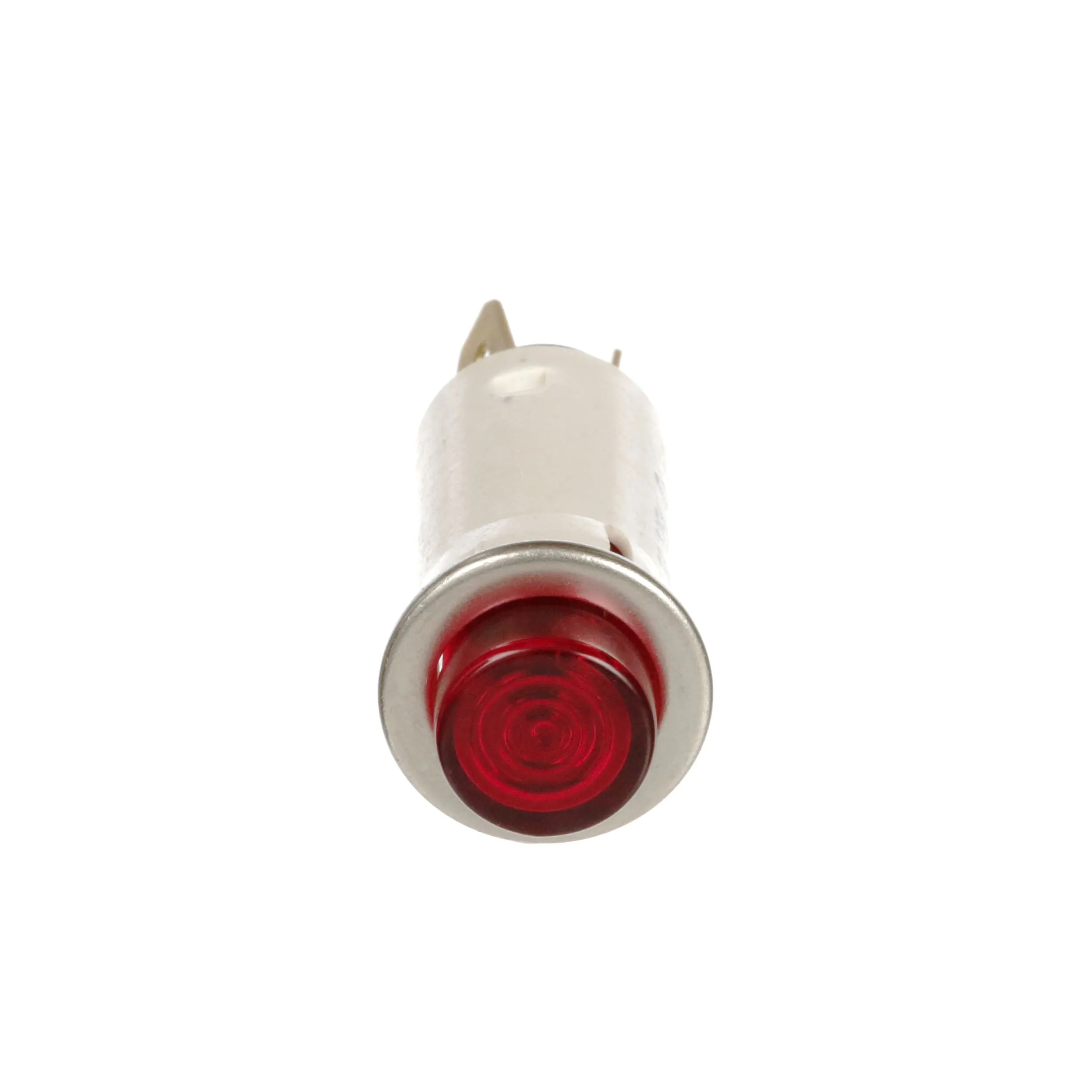

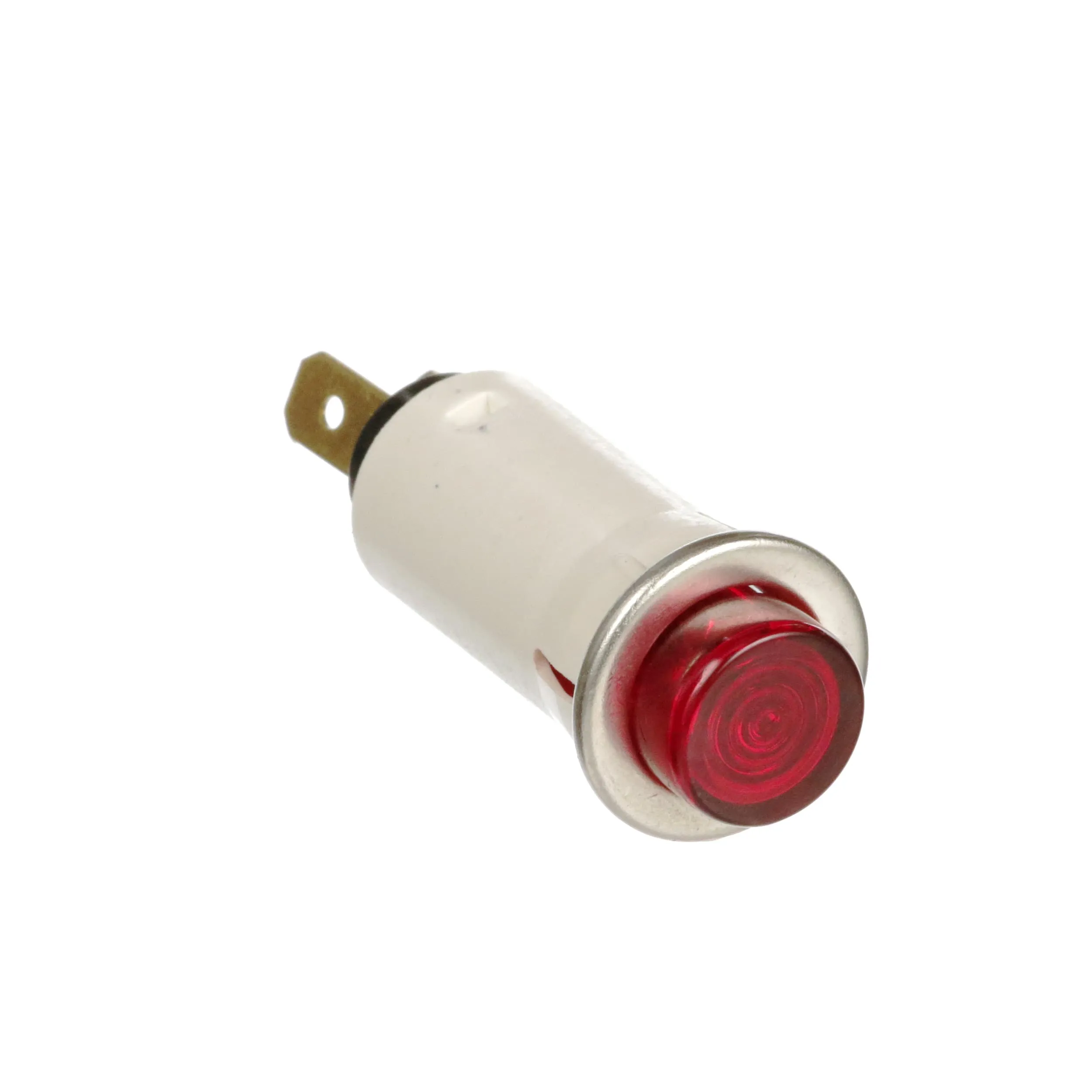

| Product Header | 32 Series Press-Fit Indicator Light |
| Series | |

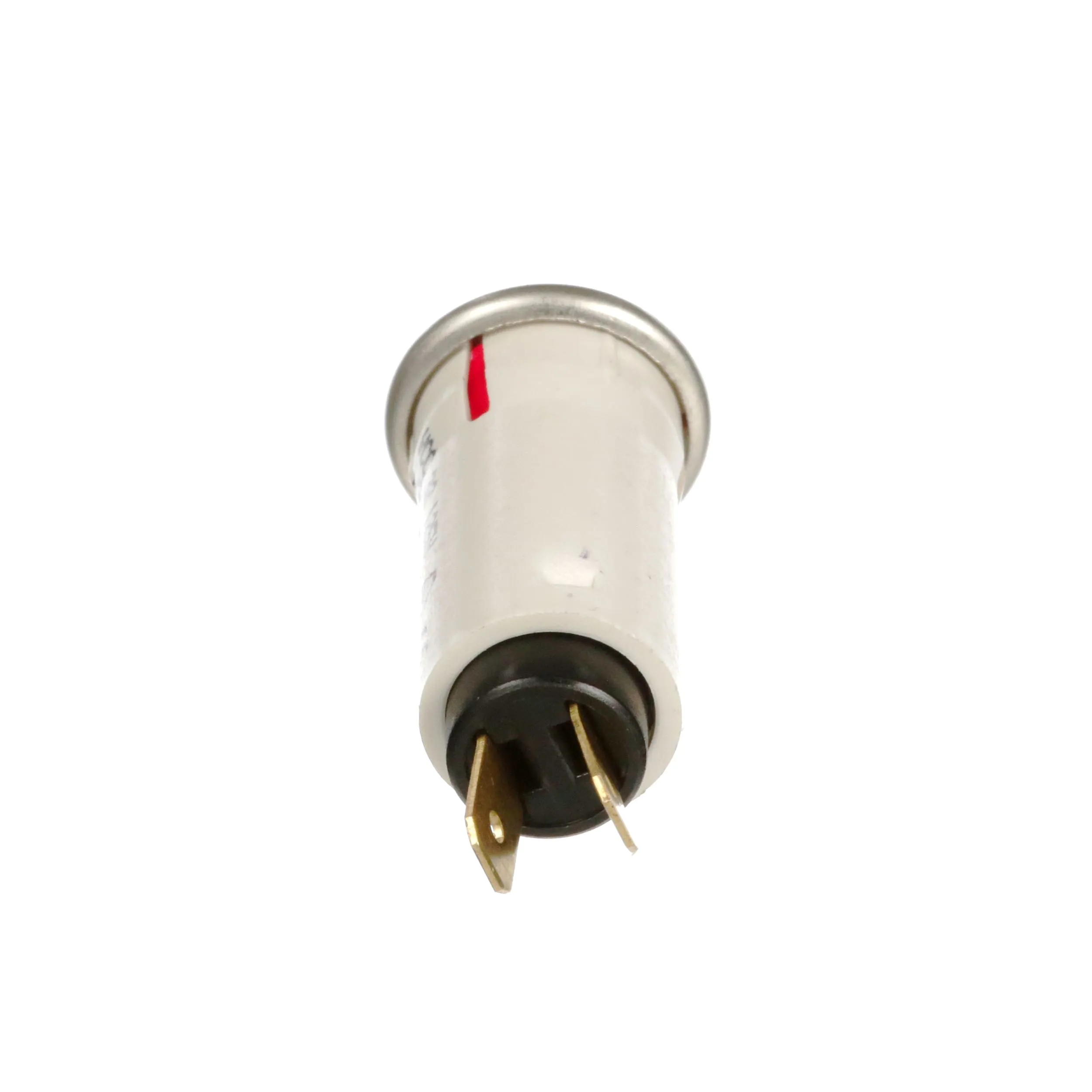

| Termination | QC Tabs |
| Type | General Purpose |
| Voltage Rating | 125 VAC |
| Voltage, Operating | 125 V |
| Wire Size | 20 AWG |
Overview
Mounting Hole Diameter 1/2 in., Neon Lamp, Power Rating 1/3 W, Press Fit Indicator Lights
Features nickel-plated bezel. Lens Styles: Flat cylindrical or flush. LED Indicators: Feature color-coded wire leads, red = anode ( ), black = cathode (-) or one tinned 3/16" terminal to identify the anode ( ), one non-tinned terminal denotes cathode (-). Termination: 6" wire leads, stripped 1/2" or 3/16" Q.C. terminals designated by T suffix. Other Options Available: Dome and Hi-Hat; 2 volt and 6 volt LED indicators or 6 volt incandescent indicators; also blue, white or clear neon and incandescent indicators. Indicators may be ordered without bezels.
The 32/35 series indicators quickly press fit into a 0.500 to 0.510 in. mounting hole with recommended panel thickness range of 0.020 to 0.090 in..
