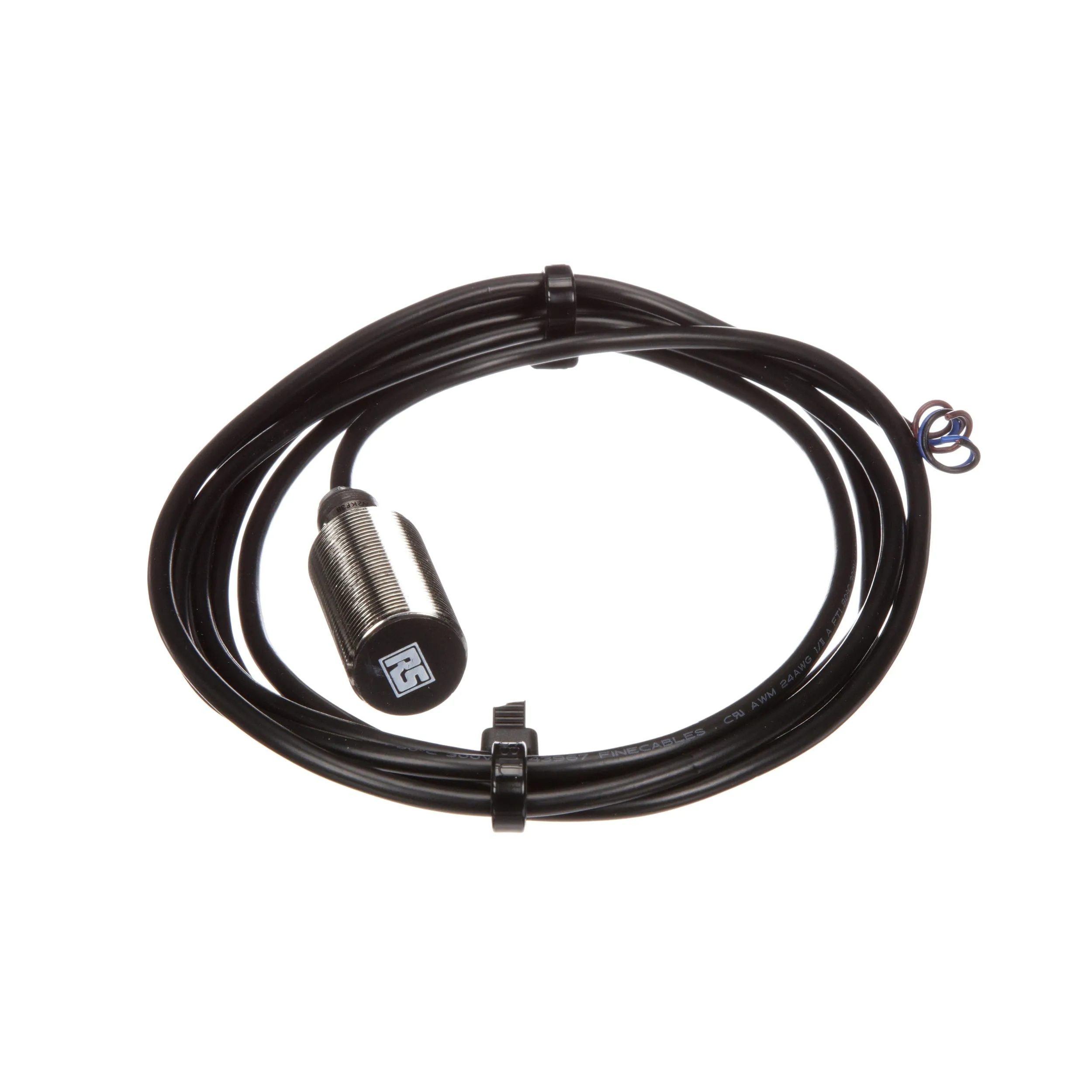

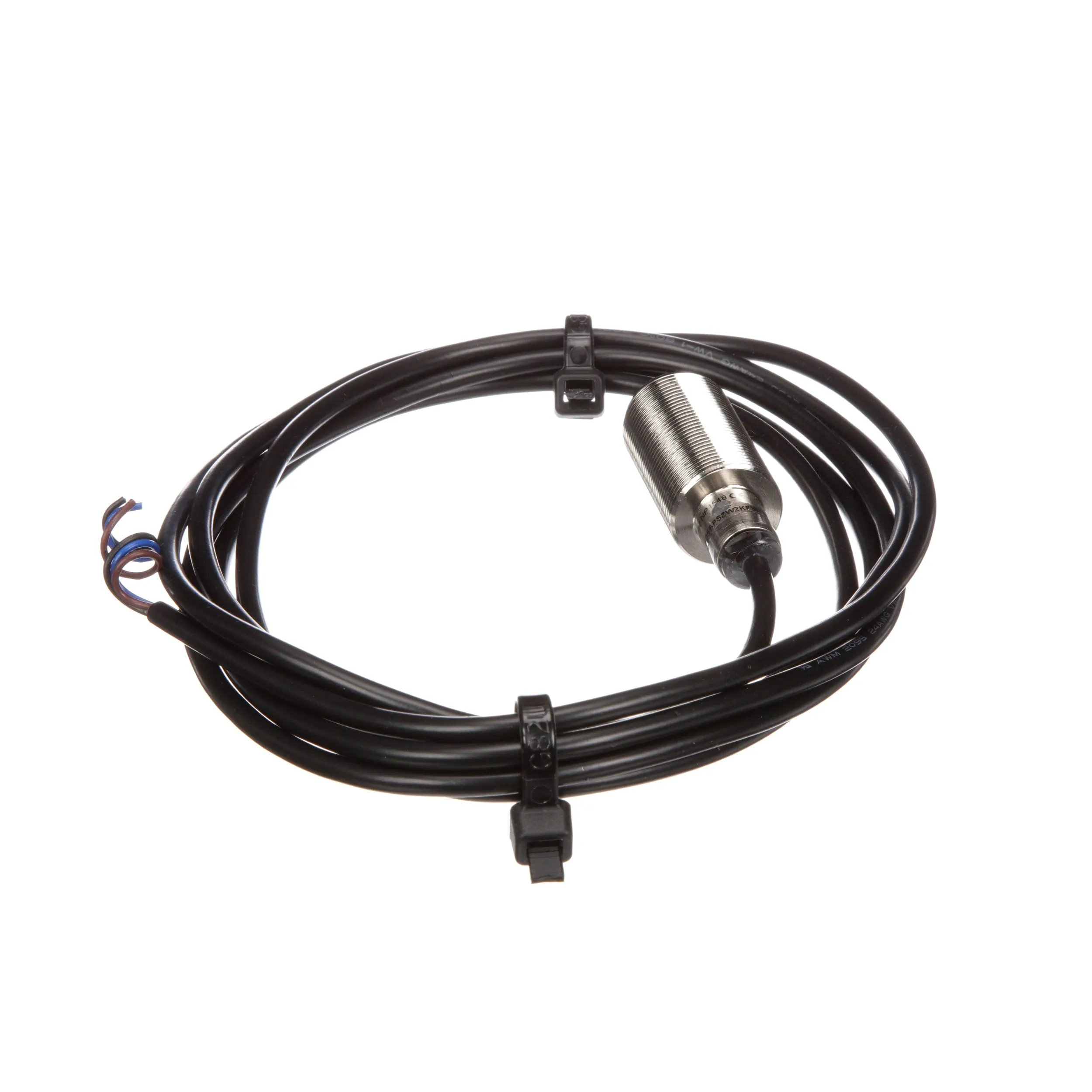

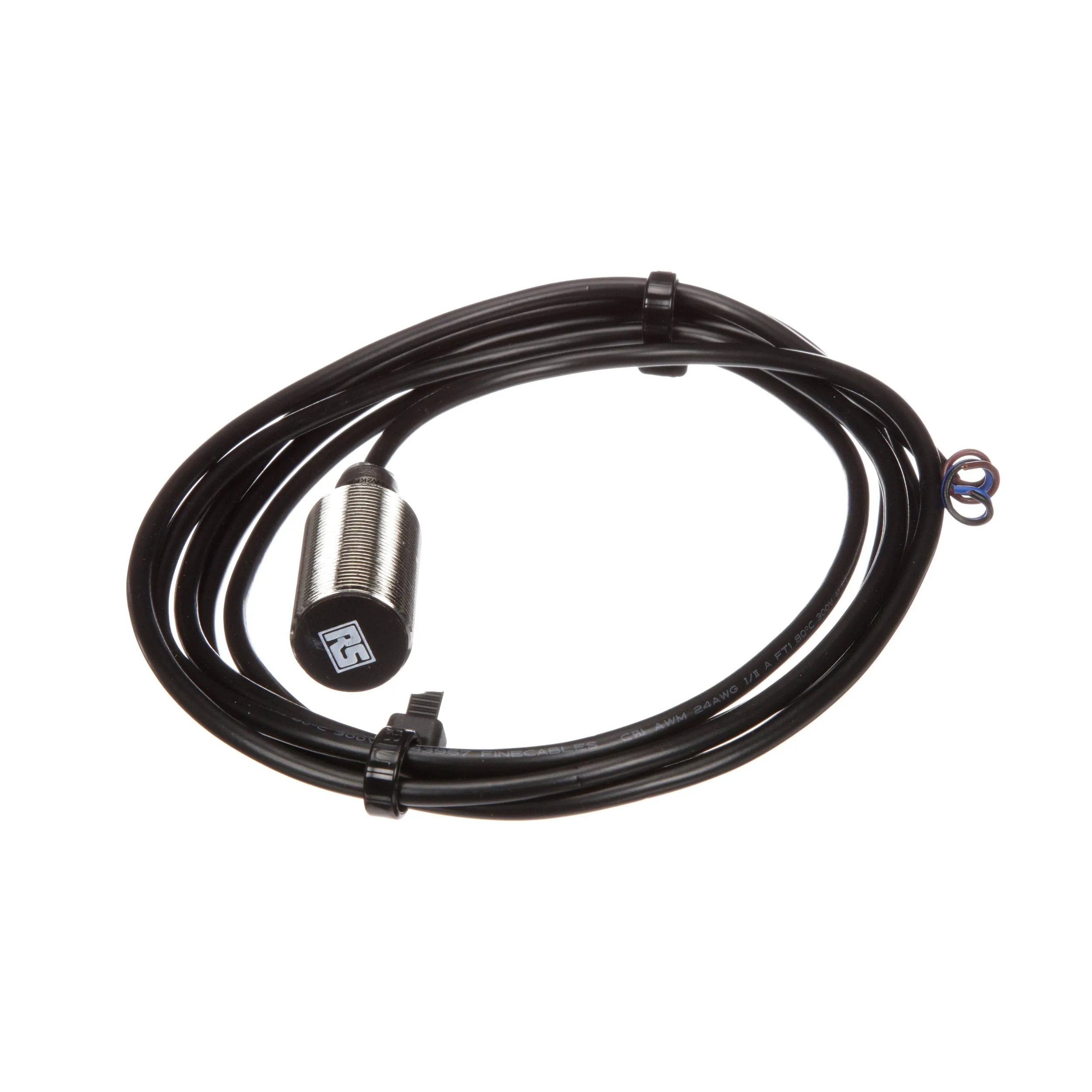

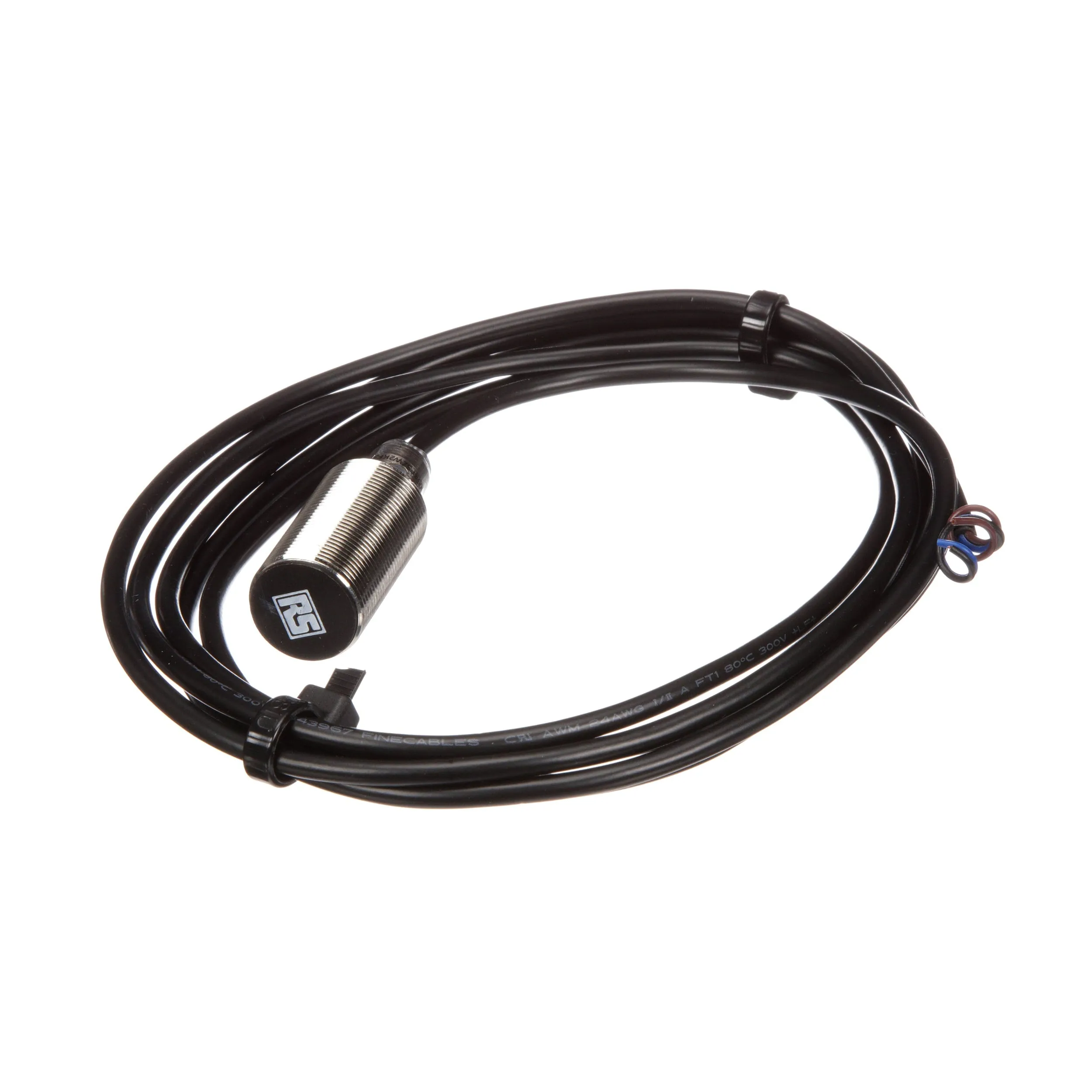

Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | IME18-05BPSZW2KF38 |
| Body Style | Cylindrical |
| Diameter | 0.71 in. |
| Frequency, Switching | 1 kHz |
| Housing Material | Nickel Plated Brass |
| IP Rating | IP67 |
| Length | 1.889 in. |
| Maximum Operating Temperature | 75 C |
| Measurement Range | 5 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | M18 Threaded Flush |
| Operating Temperature, Maximum | 75 C |
| Operating Temperature, Minimum | -25 C |
| Output | PNP |
| Primary Type | Inductive Proximity Sensors |
| Shielding | Shielded |
| Shop By | Factory Choice |
| Size, Thread | M18 x 1 |
| Standards | RoHS Compliant, UL Approved, cULus Listed, EN 60947-5-2 |
| Supply Voltage | 10-30 VDC |
| Terminal Type | Wire Lead |
| Thread Size | M18 x 1 |
| UPC Code | 5056112069775 |
Overview
RS Barrel Range
Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 Rating (Barrel is IP68)
Yellow LED output status display. Rectangular, Large Block, Stubby Cube and Combiprox also have a green LED for power on, flashing indicates a short circuit
High switching frequency
3 wire dc
No load current 15mA max.
Inherent weld field immunity
