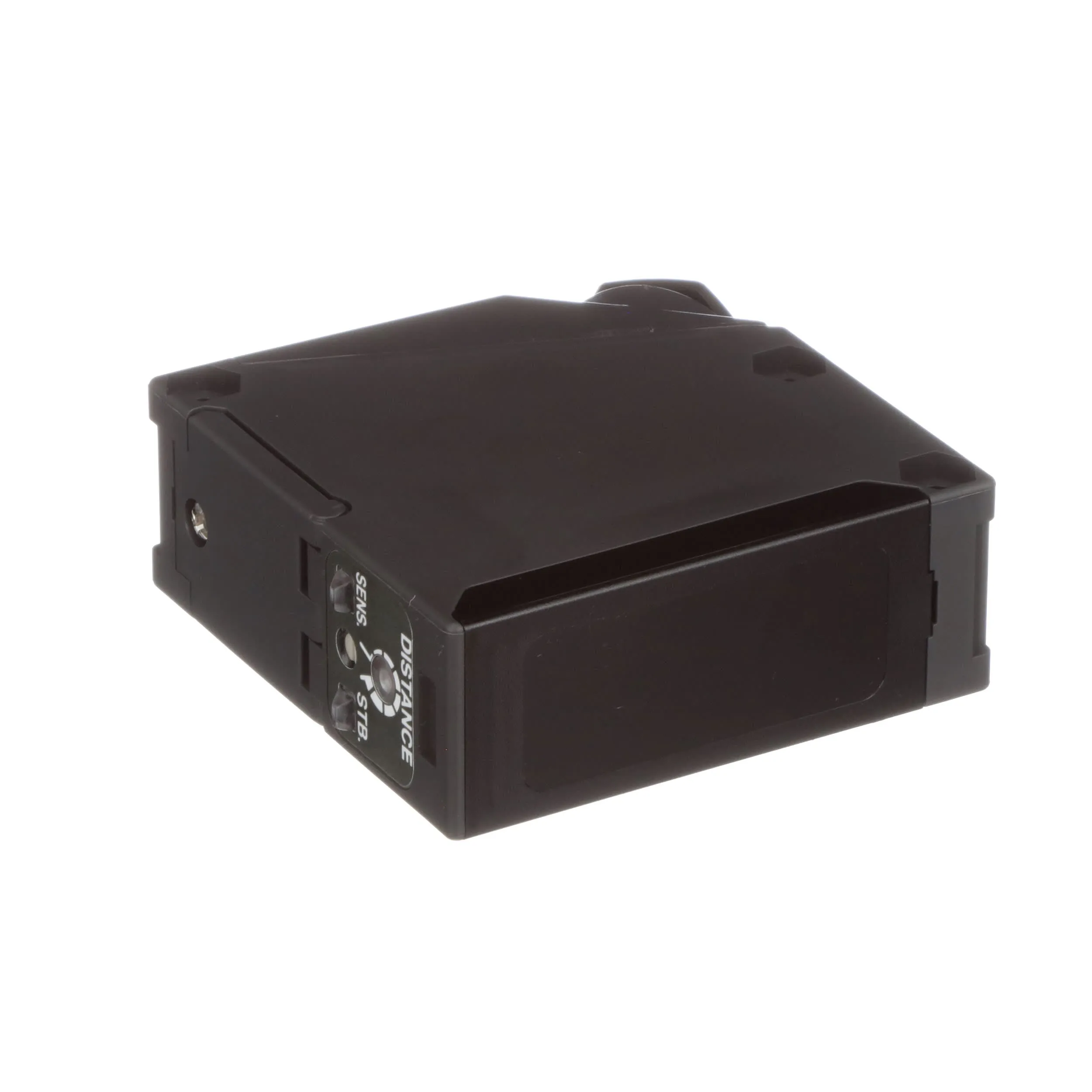

Panasonic EQ-512
Panasonic EQ-512
  • Panasonic EQ-512
  • Panasonic EQ-512
  • Panasonic EQ-512
  • Panasonic EQ-512
  • Panasonic EQ-512
Product Details ＋
Product Attribute Attribute Value
Connection Type Screws
Current, Switching 100 mA
IP Rating IP67
Light Source Infrared
Maximum Operating Temperature 55 C
Measurement Range 0.1-1 m
Minimum Operating Temperature -20 C
Operating Temperature, Maximum 55 C
Operating Temperature, Minimum -20 C
Output NPN/PNP
Response Time 2 ms
Sensing Mode Diffuse
Series
Set Point Adjustable
Supply Voltage 12-24 VDC
Technology Photoelectric
Type Reflective Sensors
Voltage, Switching 30 VDC

Overview

All Models Are Compliant with: UR, CE.

Features:

  • Not Affected by Background Objects
  • Impervious to Variation in Object Color or Angle
  • 1 or 2.5 Meter Sensing Distance Models Available
  • DC-Voltage Type Equipped with Background/Foreground Suppression
  • Multi-Voltage Model Equipped with Background Suppression Only
  • Timer Function Models Available, 0.1 to 5 Sec ON/OFF Delays
  • Conforms to IP67 (IEC)
    • Panasonic EQ-512
    • DefaultTitle

    $ 66.53

    $ 51.18
