Product Details
＋

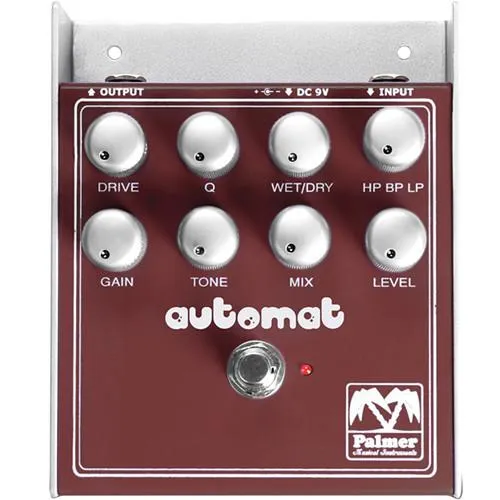

The Palmer PEAUTO Distortion Effect for Guitar contains two effects in one box: an auto wah-wah and a distortion pedal in one. Featuring the distortion circuitry of the Palmer PEDIST and an additional auto wah, the PEAUTO offers a gamut of sounds from gentle to hard, from mellow thickness to the ultimate wall of distortion.

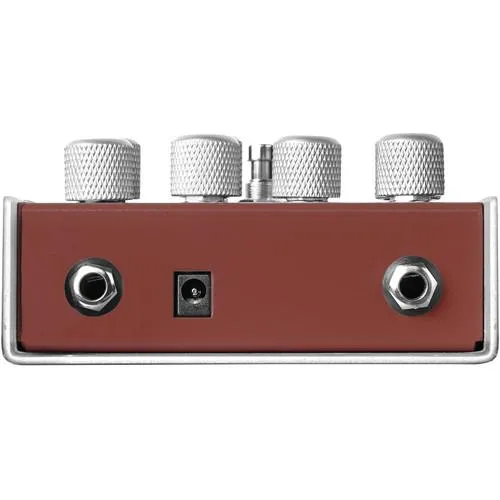

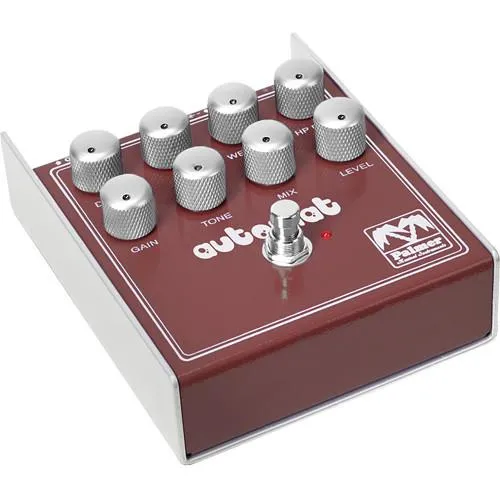

Housed in a solid metal case with extended edges for optimum protection of the in- and outputs, the knurled knobs are easy to grip and the sturdy footswitch offers just the right action point. A red LED clearly indicates whether the effect is active or in bypass mode. The unit is powered by an external 9VDC power supply or, alternatively, a 9-volt block battery.
| Type | Guitar effect pedal |
| Input Connections | 1x 6.3 mm jack, unbalanced |
| Input Impedance | 470 kΩ |
| Output Connectors | 1x 6.3 mm jack |
| Output Impedance | 100 kΩ |
| Residual Noise | -85 dB |
| Output Level | 30 dB |
| Controls | 1 x Knob: HP, BP, LP 1 x Knob: Wet / Dry 1 x Knob: Q - Factor 1 x Knob: Tone 1 x Knob: Level 1 x Knob: Mix 1 x Knob: Gain 1 x Knob: Drive 1 x Footswitch |
| Indicators | ON/Off |
| Operating Voltage | 9 VDC power supply or 9 VDC battery |
| Power Consumption | 14 mA |
| Material | Powder-coated sheet steel |
| Dimensions (WxDxH) | 4.7 x 9.4 x 2.3" / 120 x 240 x 60 mm |
| Weight | 2.2 lb / 1.01 kg |
