Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Rectangular |
| Cable Length | 2 m |
| Connection Type | Cable 3-Wire |
| Current, Switching | 50 mA |
| Dimensions | 1.26" L x 0.67" W x 0.67" H |
| Frequency, Switching | 0.5 kHz |
| Housing Material | ABS |
| IP Rating | IP67 |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 5 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | Bracket/Panel Non-Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | -25 C |
| Output | NPN-NO |
| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Unshielded |
| Supply Voltage | 24 VDC |
| Termination | 3-wire |
Overview

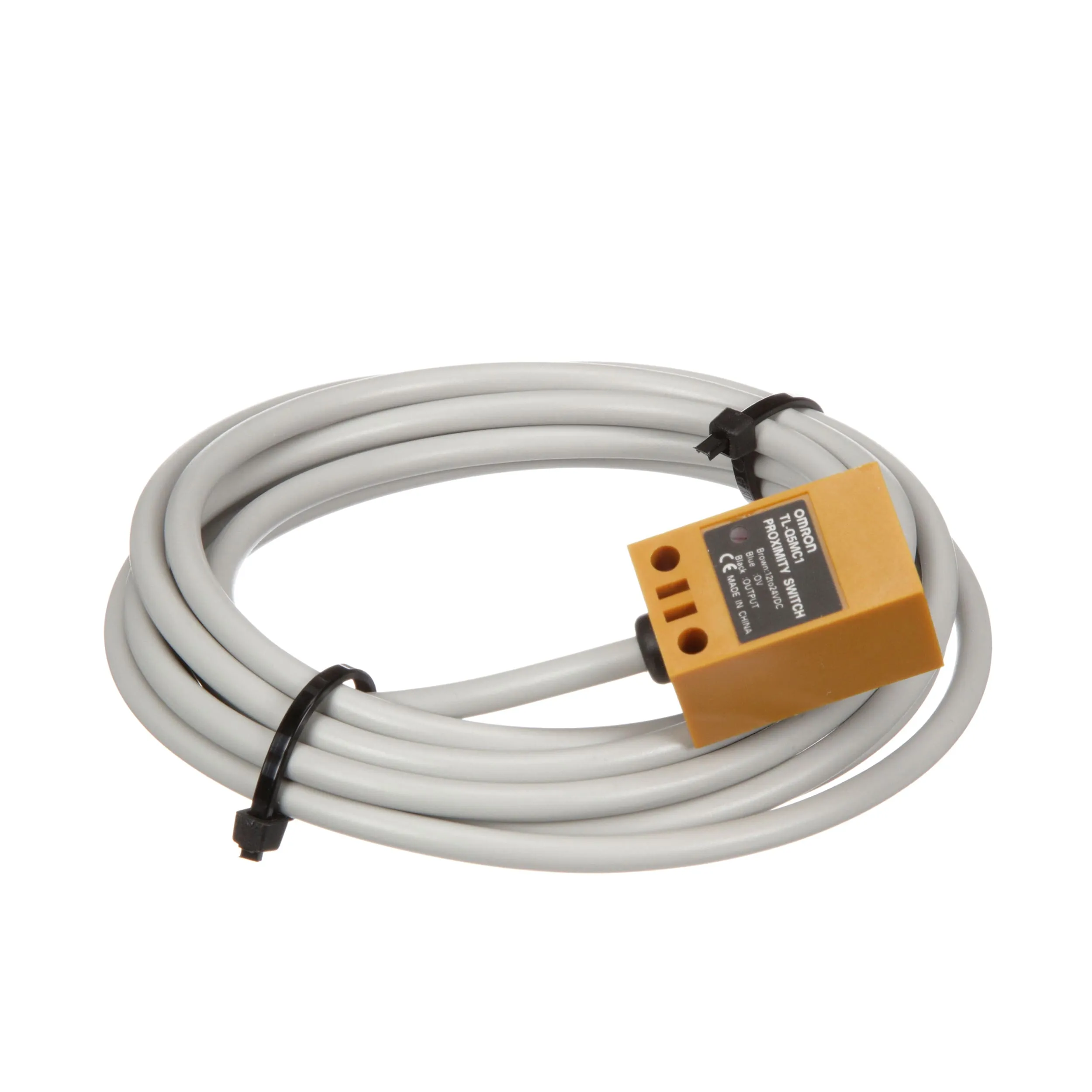

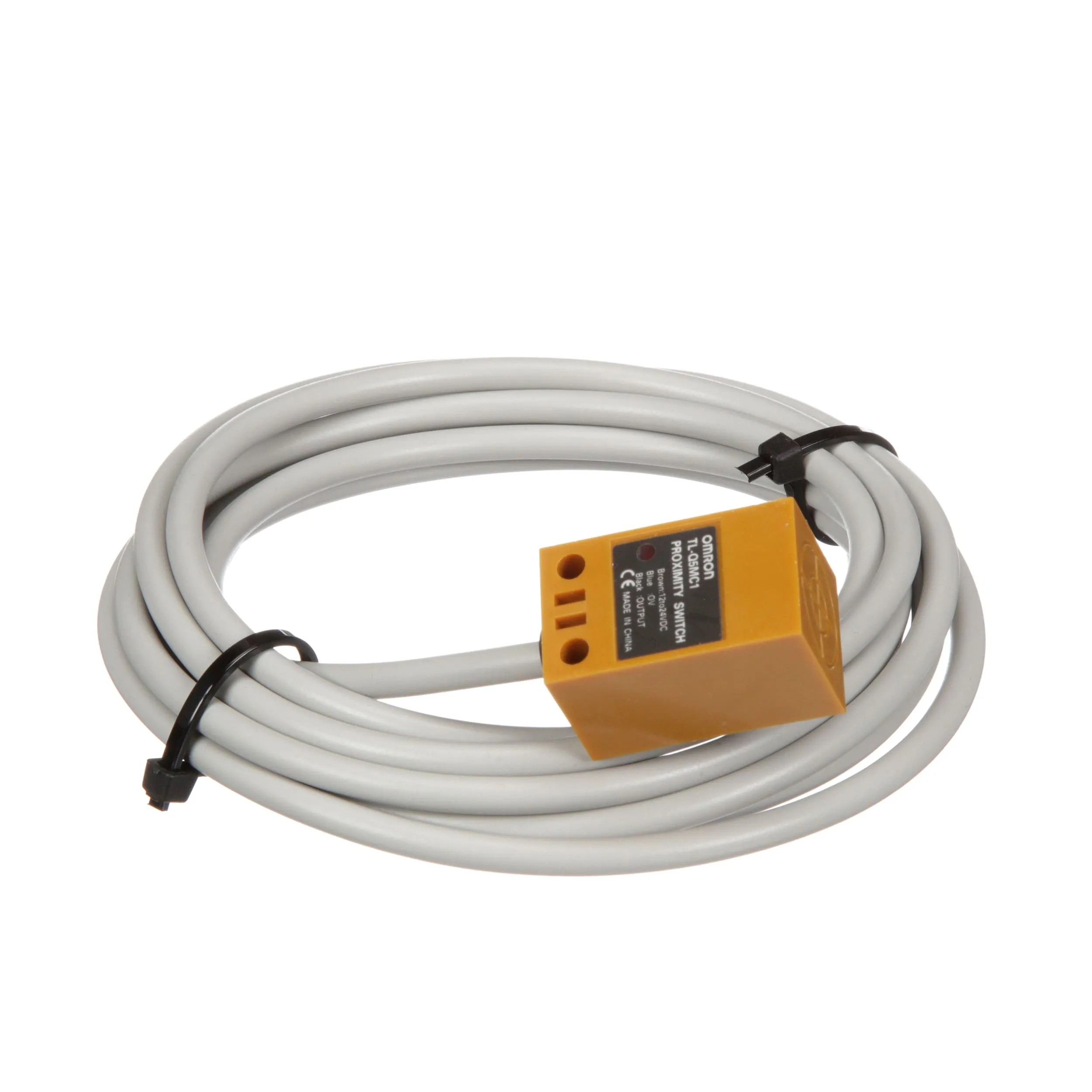

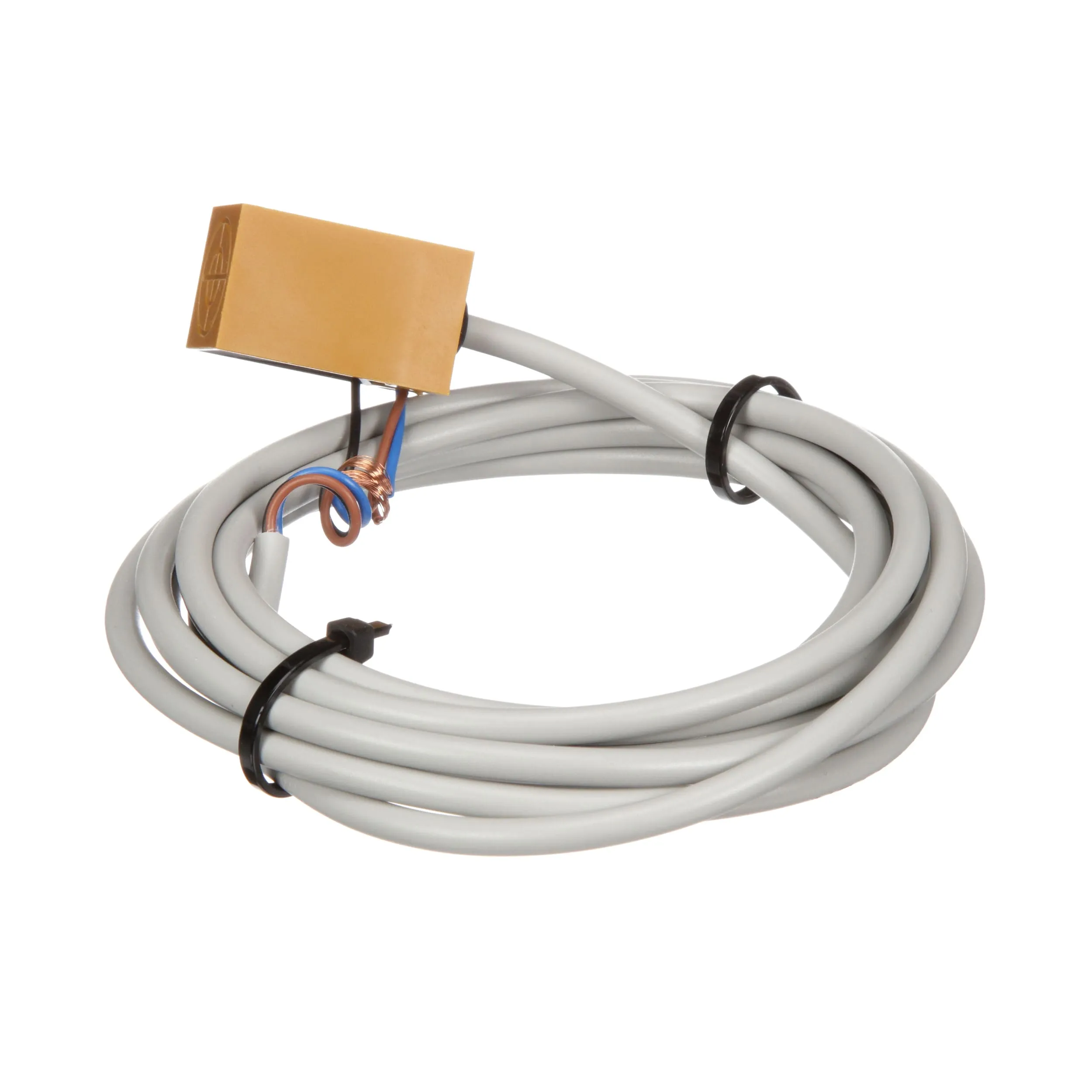

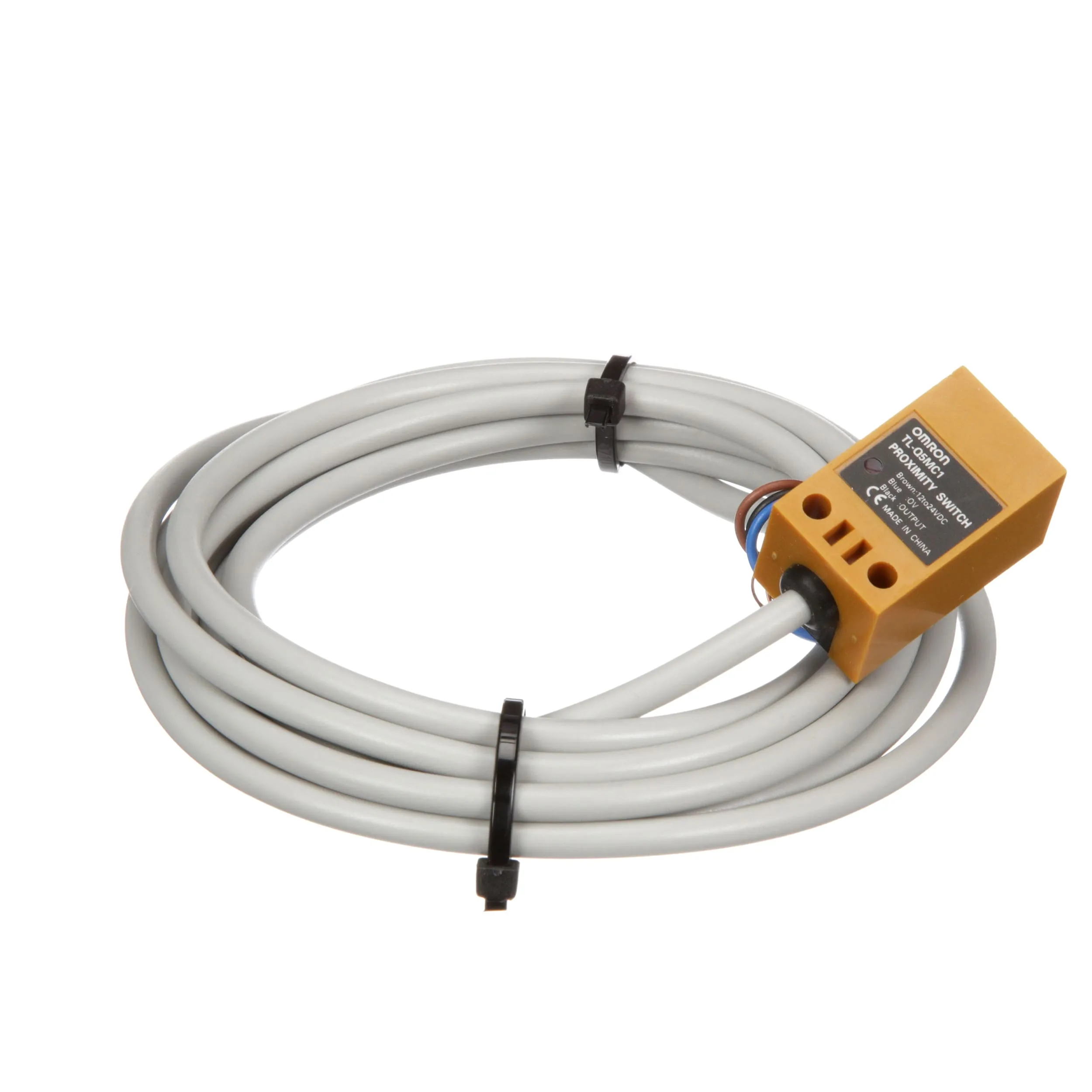

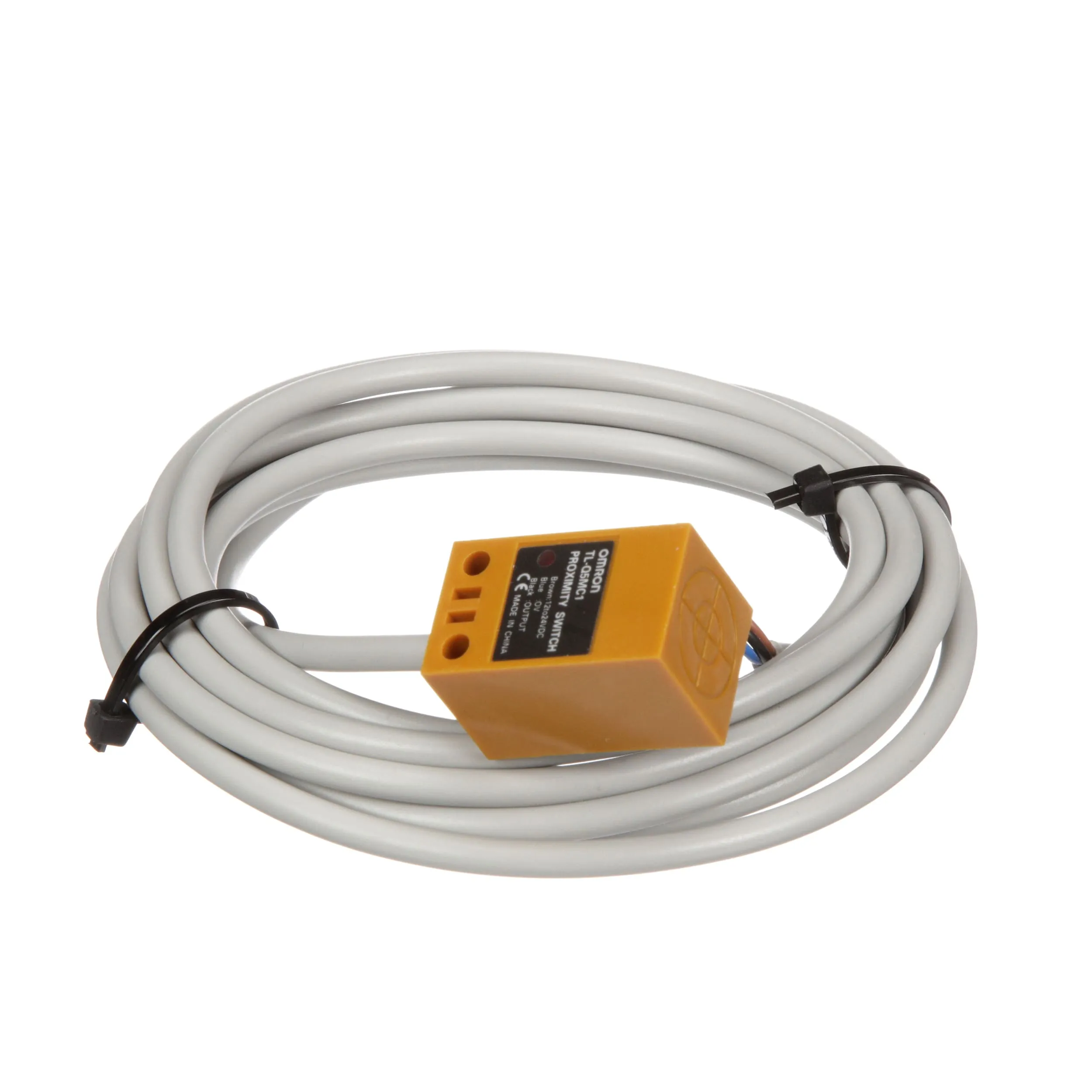

Compact Rectangular Inductive Proximity Sensor
TL-Q5 sensor is ideal for miniature control installations and watertight to IP67 standards.
