Guardian 00103 Beamer 2003 Beam Anchor, Flange Size: 6"-16" (Thickness: 1 1/4"),     New Surplus

SPECIFICATIONS

Beam Size

Fits 3½" to 14" beams (up to 1¼" thick)
or
Fits 6" to 16" beams (up to 1¼" thick)

Material

Aluminum, bronze manganese, zinc-plated steel, and stainless steel

Capacity

420 lbs.

Minimum Breaking Strength

5000 lbs.

Weight

4 lbs.

Applicable Standards

ANSI Z359.18-17, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910

Part Number

00101 (Fits 3½" to 14" beams)
or
00103 (Fits 6" to 16" beams)

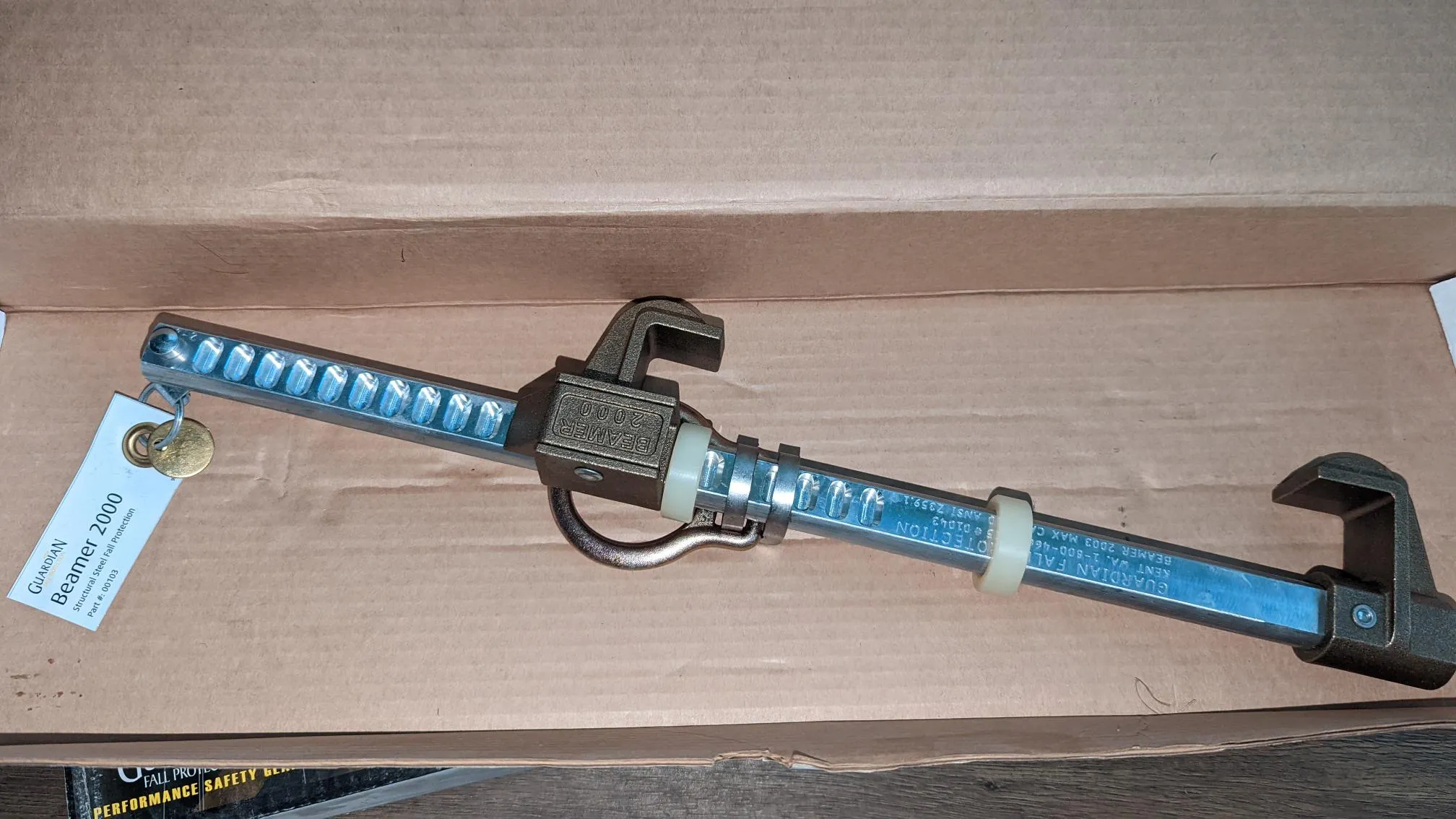

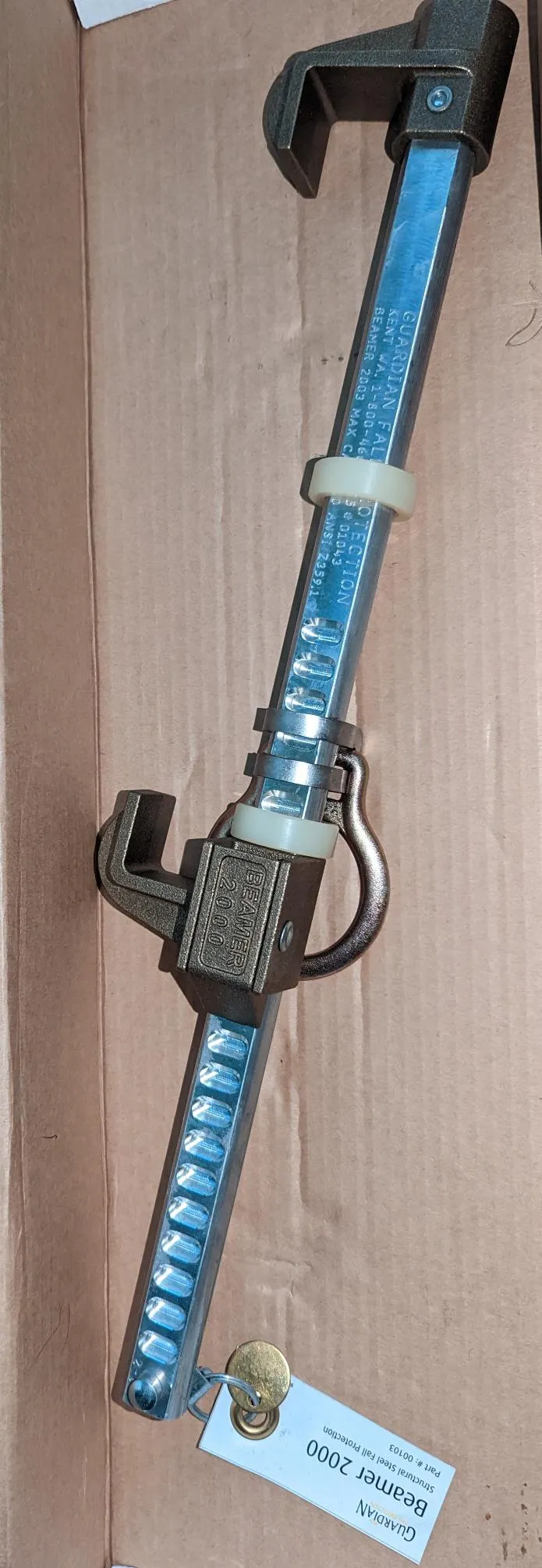

Guardian Beamer 2003 Beam Anchor

The Guardian Beamer 2003 Beam Anchor is a versatile fall arrest anchor designed for use both overhead and at foot level. This beam anchor is attachable to both steel I and H beams. The nylon bushings provide smooth movement along the beam and also function as impact indicators in the event of a fall. The anchor also includes a precision machined aluminum bar and ratcheting end pieces, which allow for quick and easy adjustments with just one hand.
