Features:

• measures the average power of all modulation formats
• wide dynamic range (-60 to 20 dBm) and frequency range 10 MHz to 6 GHz
• high maximum power specification
• low SWR for reducing mismatch uncertainty
• calibration factors linearity and temperative compensation data stored in EEPROM
• fast measurement speeds (up to 400 readings per second with the Keysight E4416A)
• compatible with EPM (N1913A / 14A, E4418B / 19B), EPM-P (E4416A / 17A), and P-series (N1911A / 12A) power meters

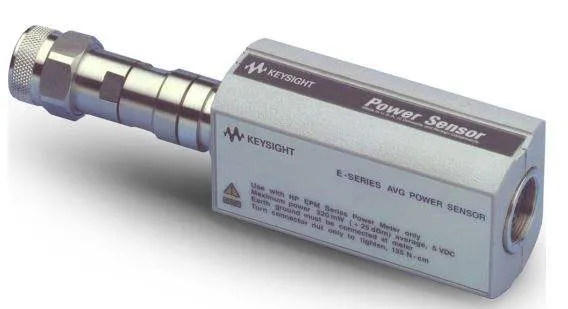

The E9301A power sensor measures average power over the frequency range 10 MHz to 6 GHz and power range -60 to 20 dBm (80 dB dynamic range).

E-Series Average Power Sensor (10 MHz to 6 GHz)

The Keysight E-Series E9300 is a wide dynamic range, with average power sensors. These sensors are compatible with EPM (N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters.
