Description

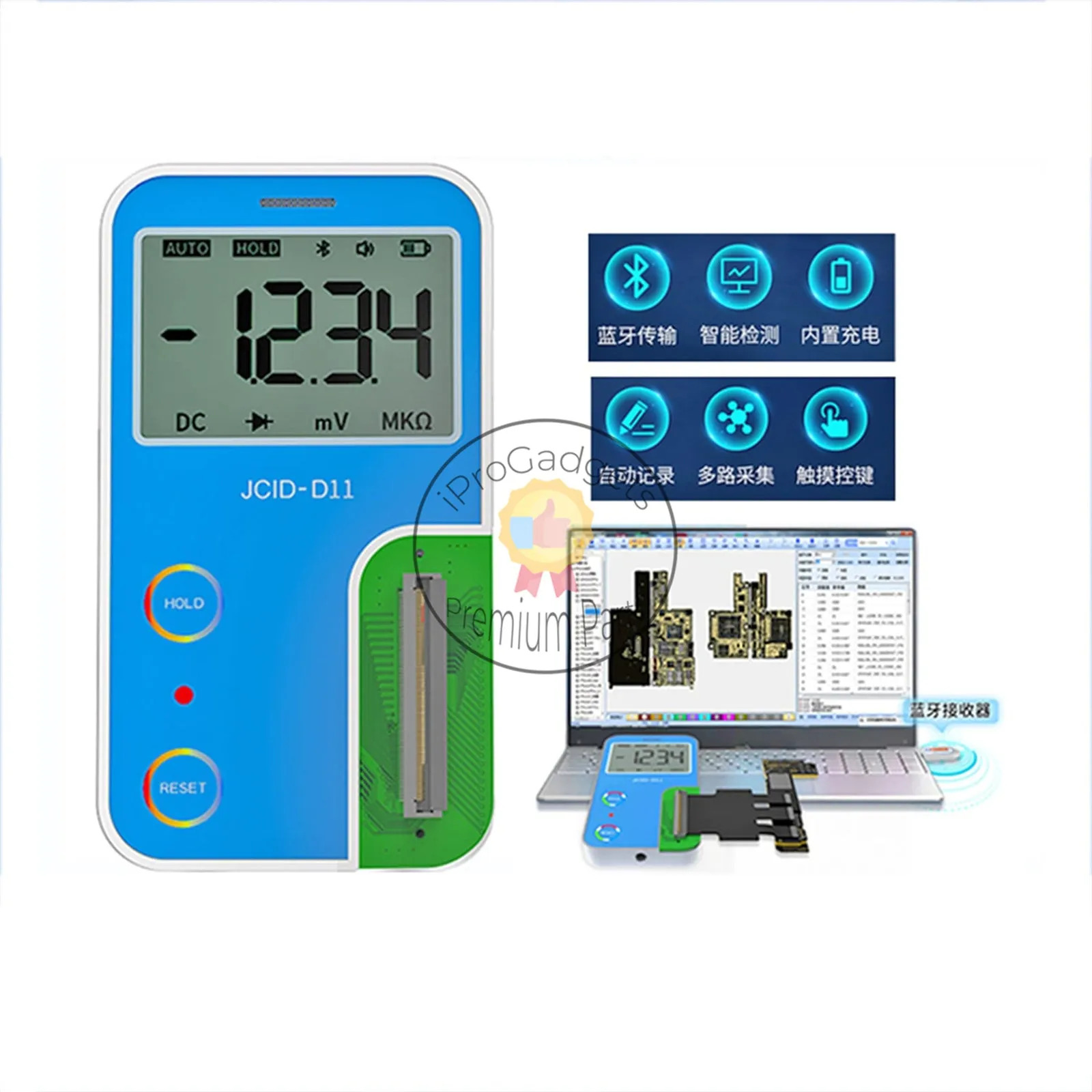

JCID-D11 Digital Detector for measuring PCB board voltage, resistance, diode values, short-circuit, ect. JCID-D11 Multifunctional Digital Detector supports Bluetooth connect with JC Intelligent Drawing and works with Phone Maintenance System JC Maintenance Diagram. JCID-D11 digital detector is an intelligent phone repair measurement tool.

Features:

• D11 Digital Detector Enables Faults Detection In Seconds
• Bluetooth communication, intelligent acquisition of voltage and resistance to ground, help you to quickly analyze and lock faults
• Intelligent detection faster and more accurate, data acquisition, JC Drawing D11, to create an intelligent maintenance ecology
• Multiple methods, to meet the needs of various, measurement scenarios
• Bluetooth Connection to JCID drawing software
• Measure the voltage, resistance, diode, short circuit

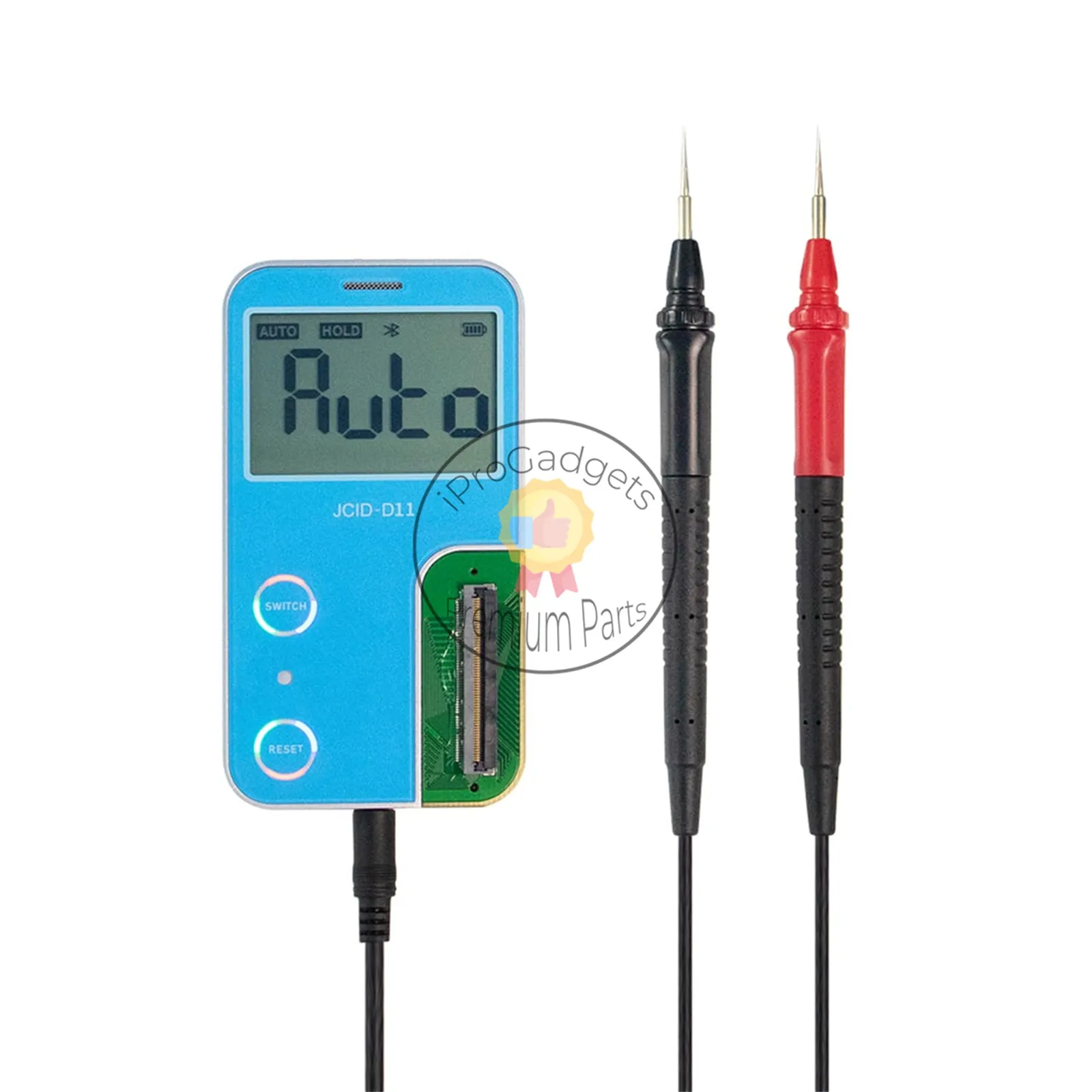

• Connect to Multimeter pen for manual measurement
• Connect to flex cable for automatic measurement
• A built-in rechargeable battery allows for repeated use
• Allow for Contrast and Analysis between the measured value and the standard value

Guidelines for usage (Ref.):

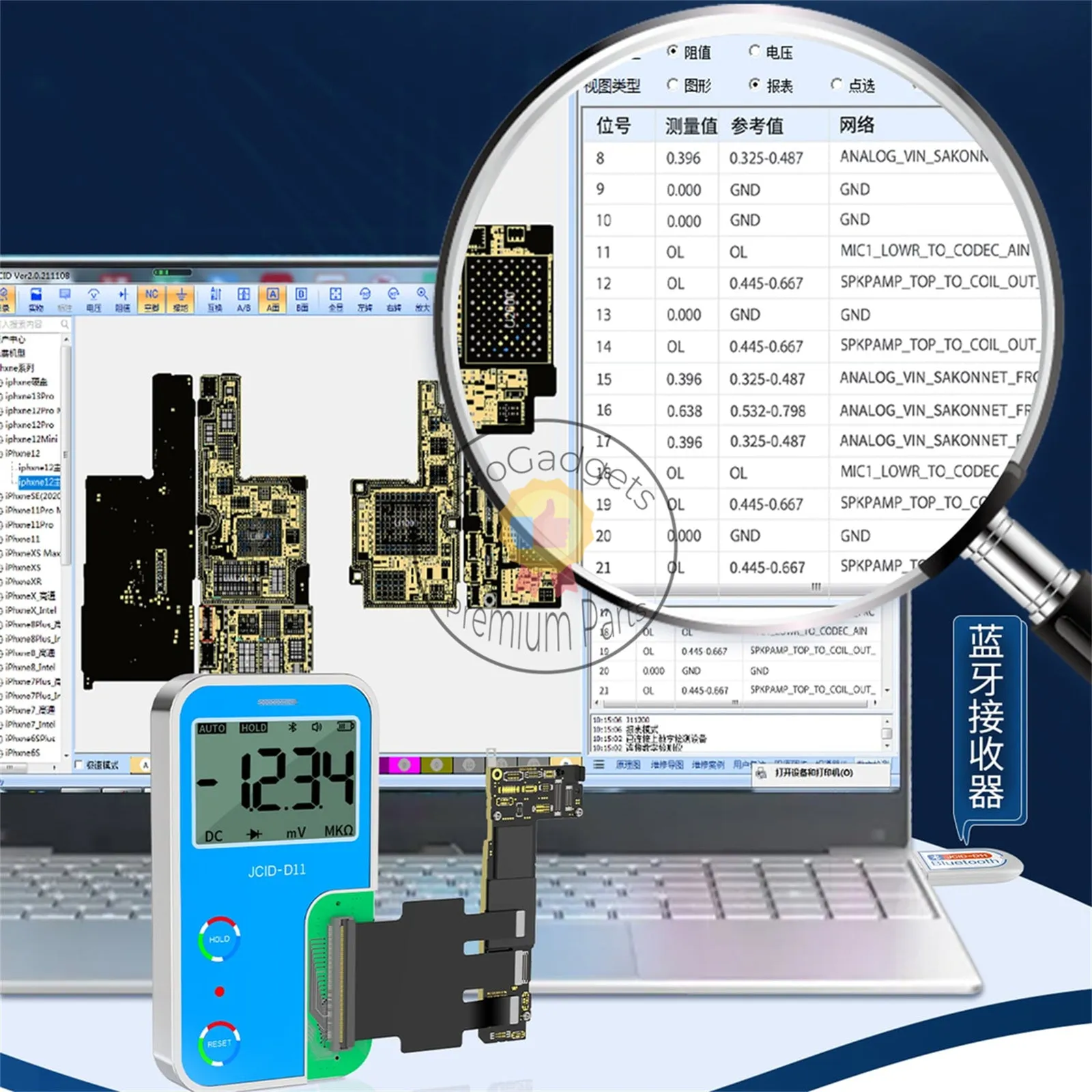

• Intelligent Measurement, Use: D11 External measuring cable Bluetooth receiver JC drawing Mainboard
• Advantages: multi-channel simultaneous measuring, automatic recording, intelligent judgment, simple and efficient operation, getting rid of cumbersome

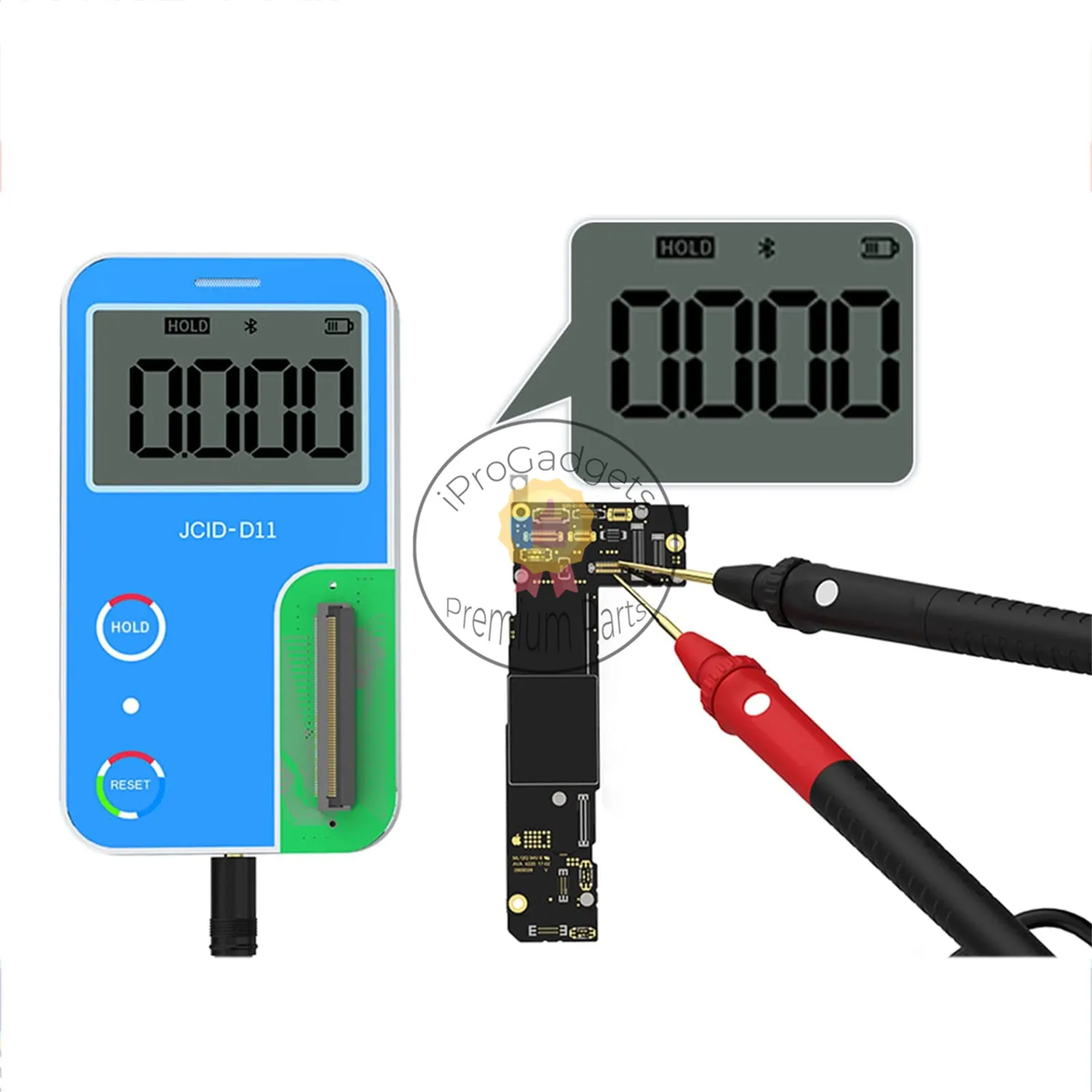

• Pen Measurement, Use: D11 Measuring pen Mainboard
• Advantages: Applicable to all equipment detection, detection of voltage, resistance, and diode value; with buzzer prompt; the touch pen automatically records data to the JC drawing platform
• External Panel Measurement, Use: D11 Measuring pen External measuring panel Measuring cable Apple mainboard
• Advantages: Measuring the inline base no need to operate under the microscope, does not hurt the base, enlarging the test point for easy measurement

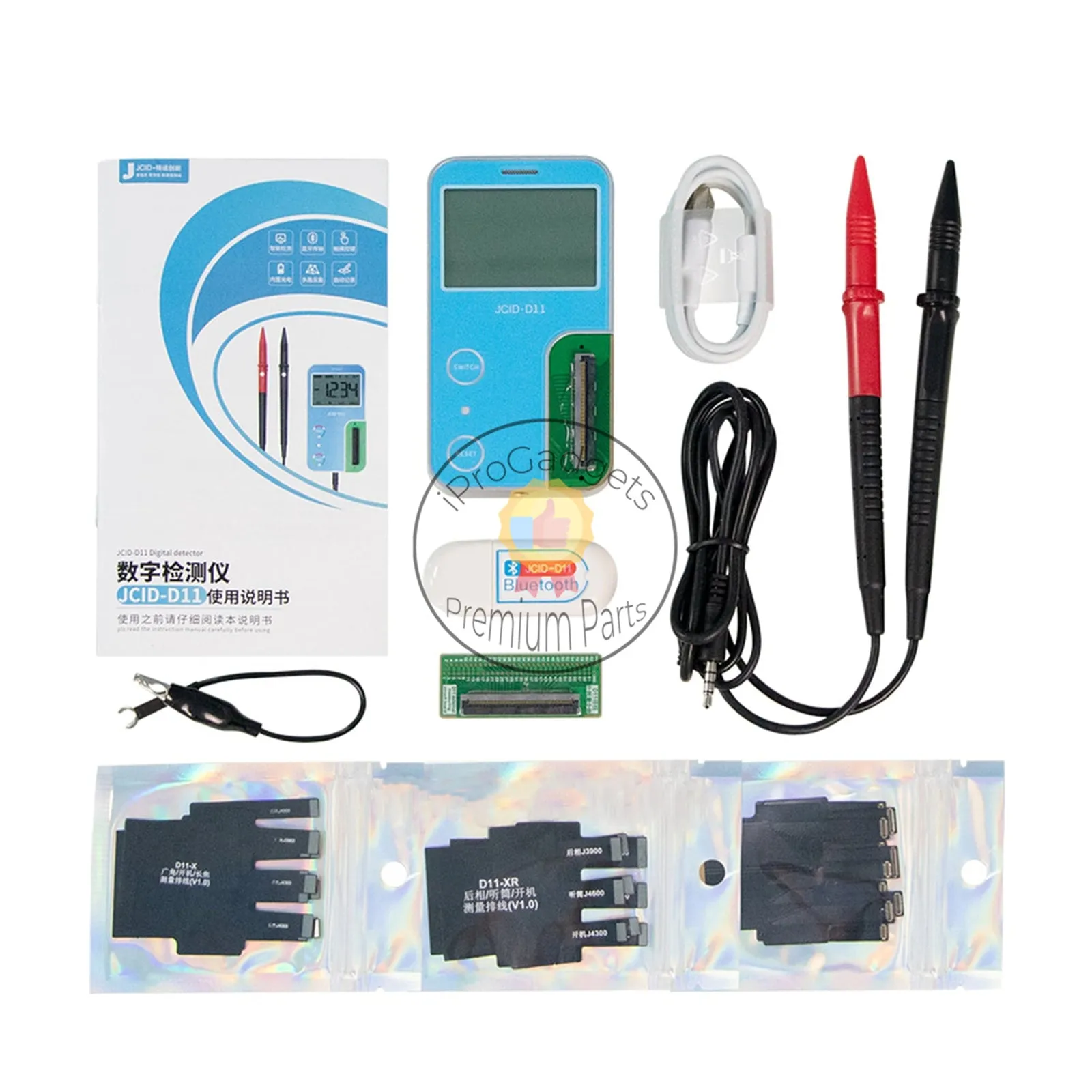

Package list

• 1 X Digital detector
• 1 X Multimeter pen
• 1 X External measurement flex cable
• 1 X Scraper (Model Random)
