Features:

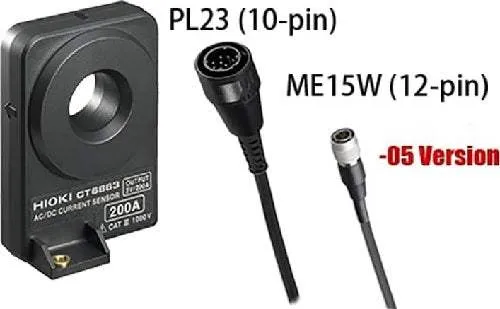

AC/DC Current Sensor (200A 500kHz) for PW6001

• Super high precision, ±0.05% amplitude accuracy, ±0.2° phase accuracy
• Wide-bandwidth DC to 500kHz excellent frequency characteristics
• Applications in the fields of electric and hybrid electric vehicles
• Wide operating temperature range(-30°C to 85°C) fit for automobile applications
• Ideal for evaluation of solar power generation and fuel cells to measure battery charge and discharge and the secondary side of inverters
• For observing waveforms to be used with the oscilloscopes or Memory HiCorders

Hioki pull-through AC/DC current sensors are best-in-class devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT6862 is a DC to 1MHz/50A sensor, and the CT6863 is a DC to 500kHz/200A sensor, and both are ideal for capturing current signals from switching power supplies, inverters, power conditioners, etc.

Hioki CT6862 wide-bandwidth and high-precision AC/DC current sensors achieve high accuracy measurement of both small- and large-current signals. They can be used for a wide variety of applications in the fields of electric and hybrid electric vehicles, inverters and other devices, alternative energy sources such as solar power and fuel cells, as well as home electronic appliances and system equipment.
