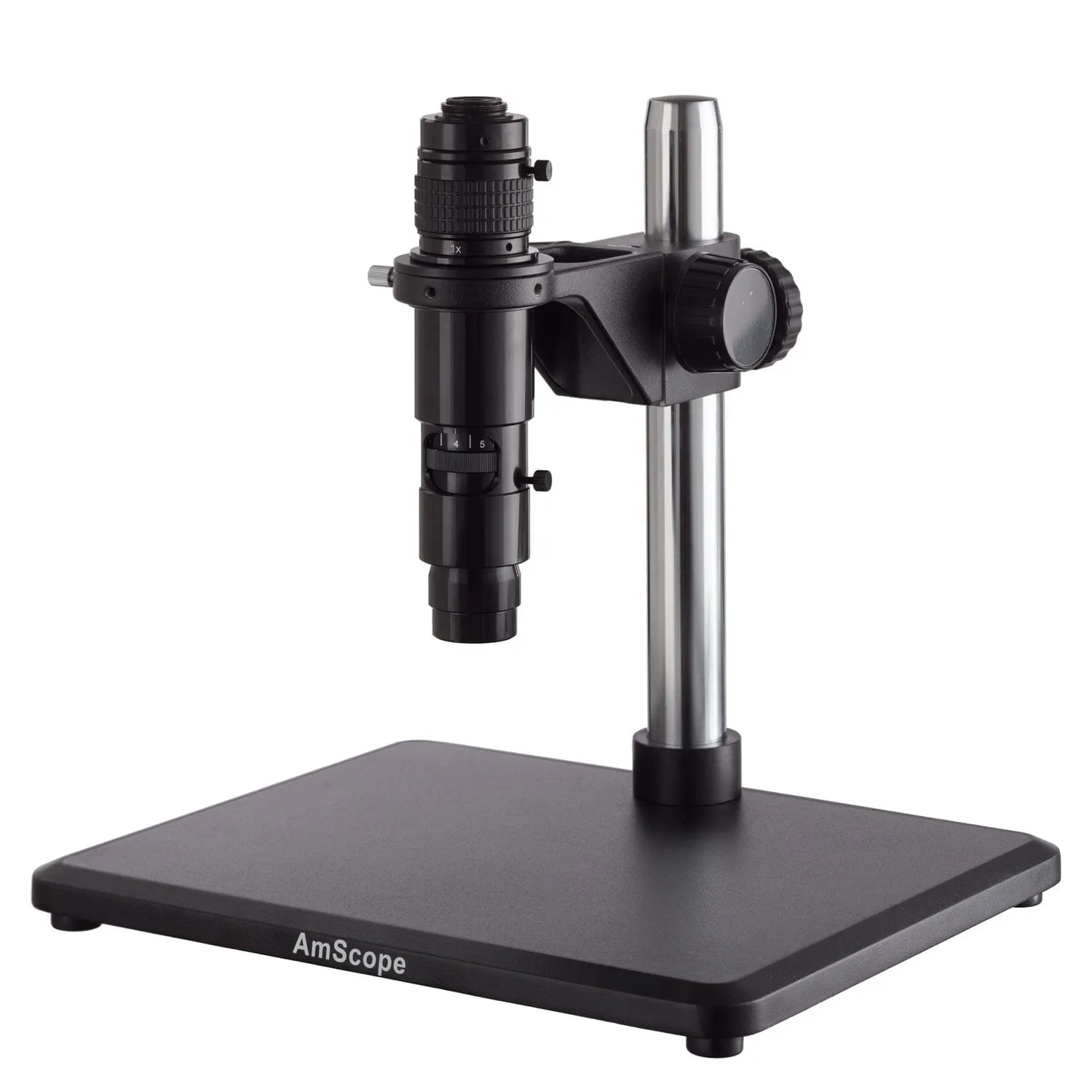

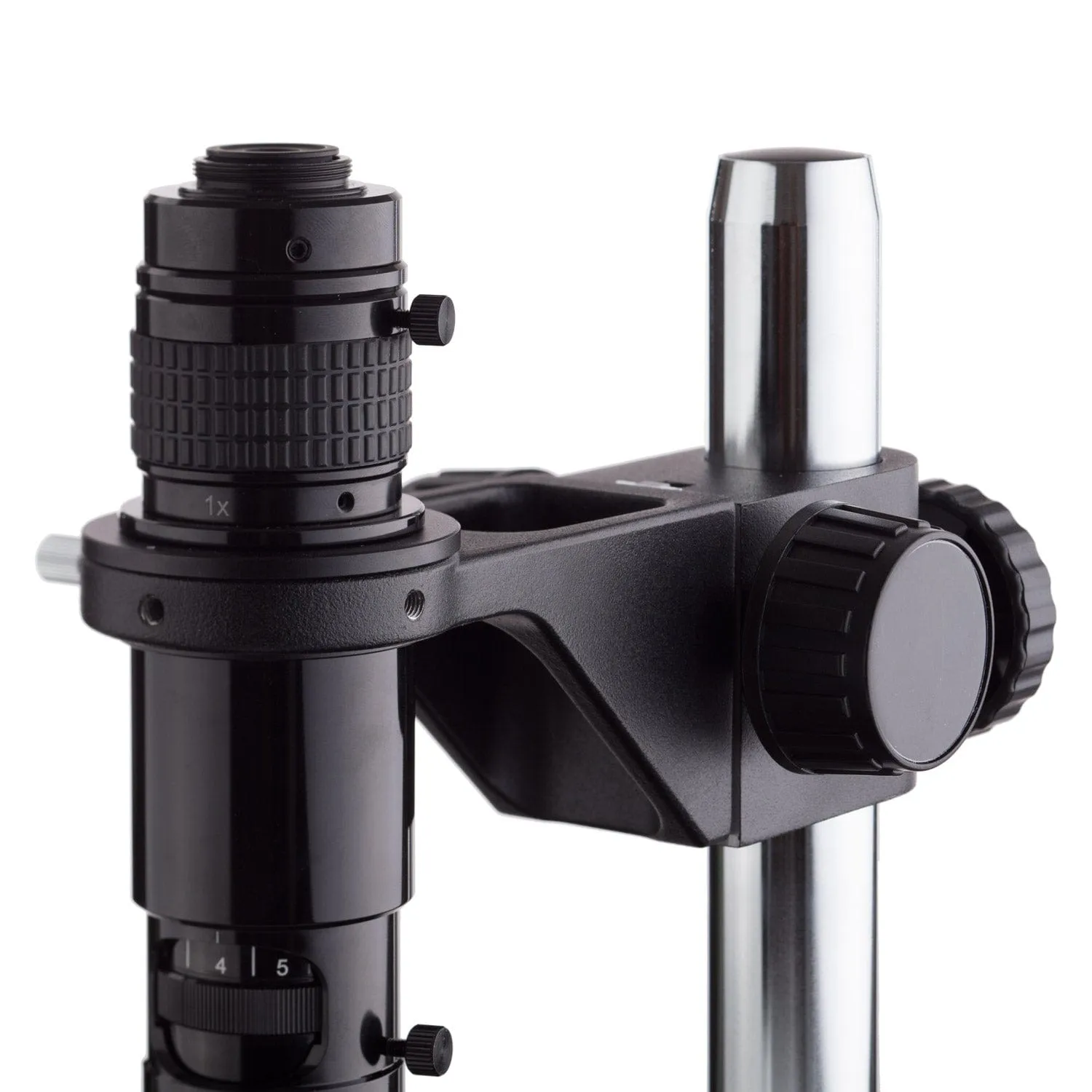

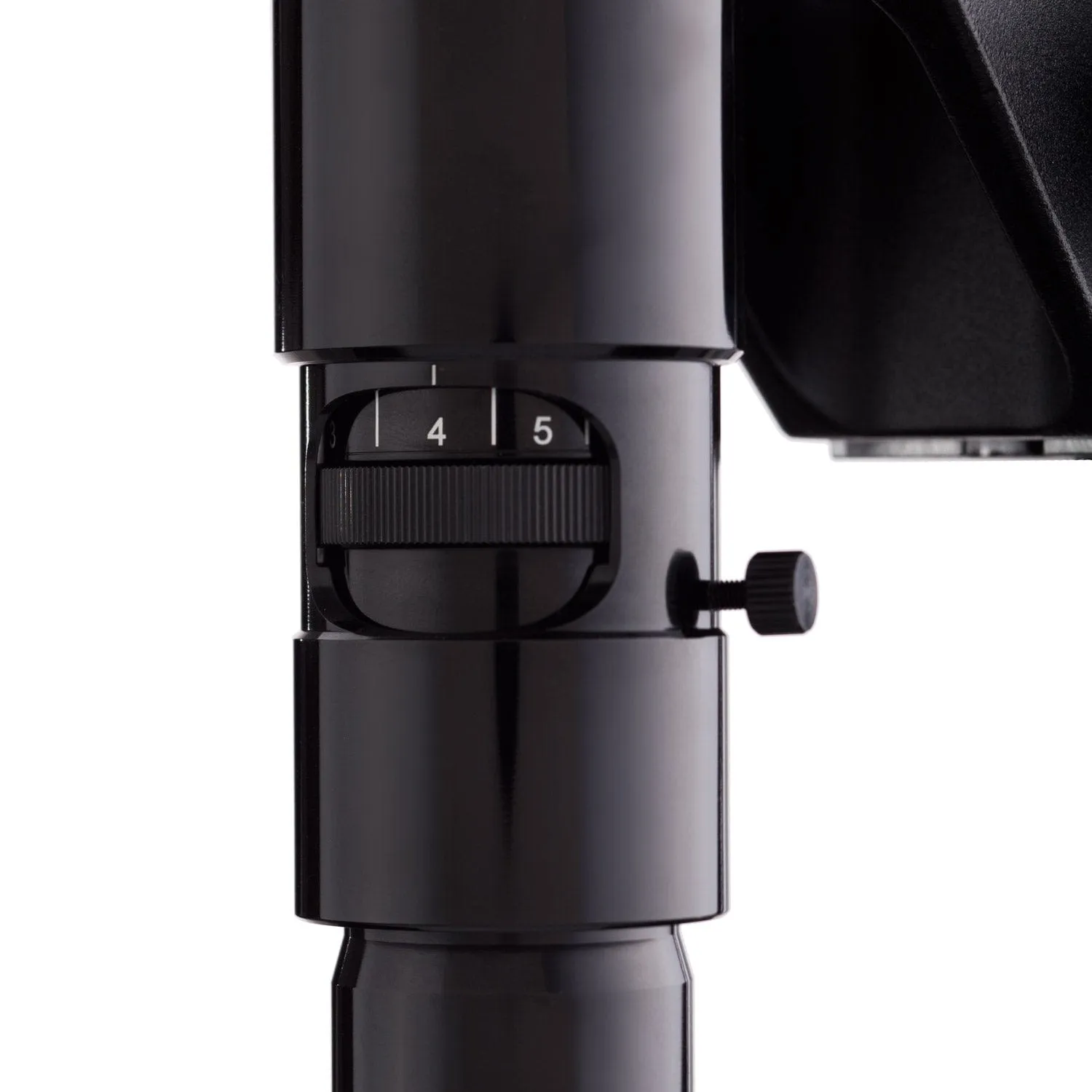

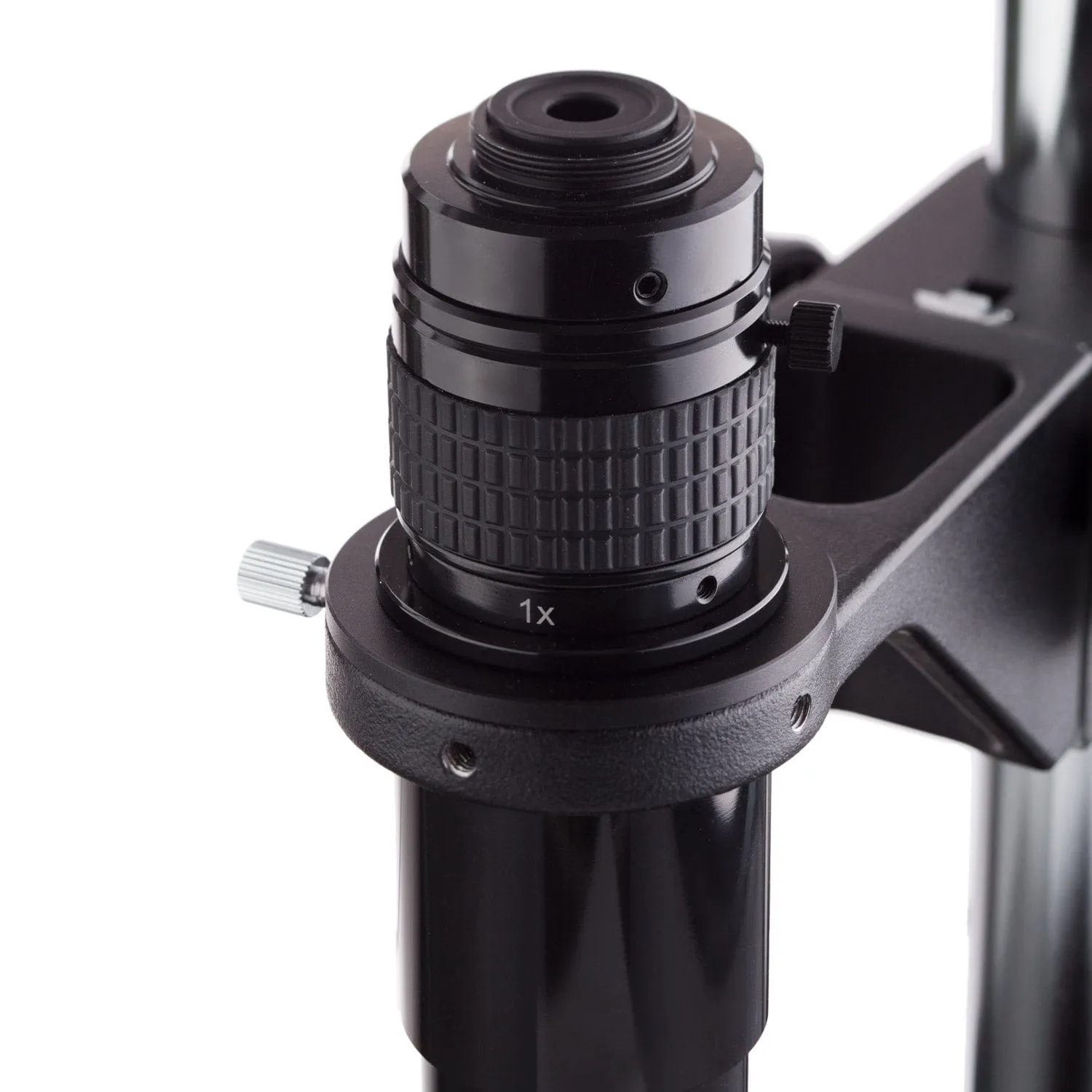

The H1000 is a wide-range monoscopic zoom microscope, commonly used for industrial inspection. The 0.83X to 10X zoom objective provides a large range of magnifications, with a 1X C-mount interface for C-mount cameras. The interface includes a diopter for fine-focus adjustment, useful for making the objective's zoom range parfocal with the imaging device. The C-mount has a removable aperture to accommodate image sensors up to the 1" format. Both the zoom and diopter are lockable for measurement applications. With the use of an optional AD-C23 adapter, an eyepiece can be used.
The included stand has an 11" round pillar and a large-footprint base. The focusing rack is compatible with 1.25" diameter pillars, allowing the microscope to be used on other stands, including our single-arm and double-arm boom-stands.
Specifications:
