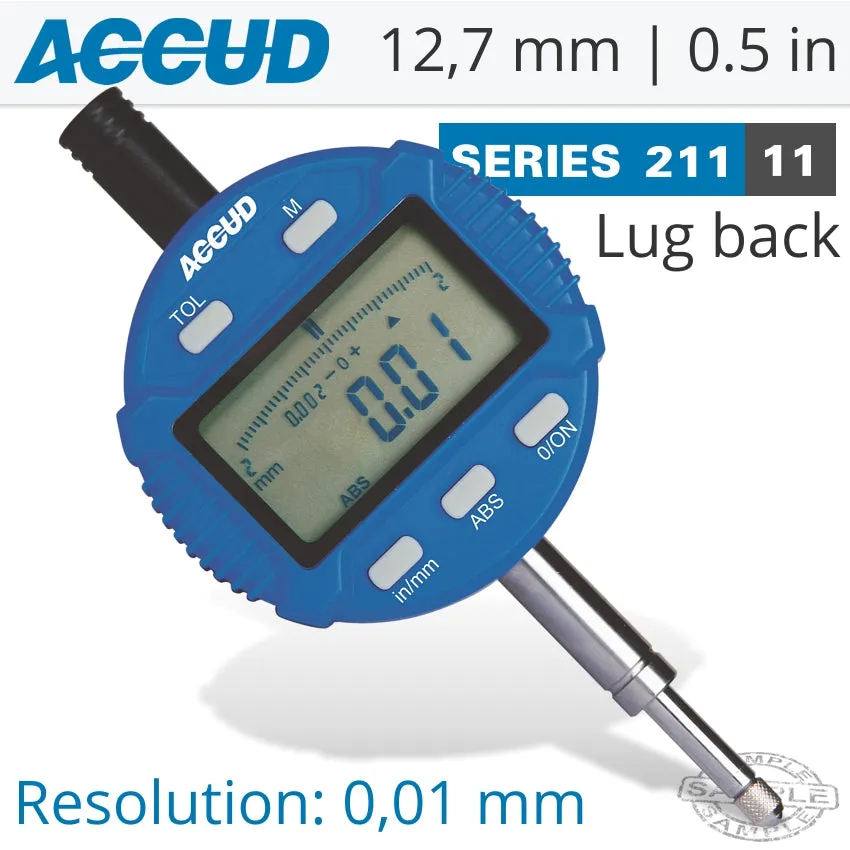

Resolution: 0.01mm

Range: 12,7mm

Manufacturer Cat No: 211-010-11

Resolution: 0.01mm | 0.0005in

Features at a glance

• Reading in digit and analog
• Button function: tolerance Go and No-Go display, data preset, measuring direction set, max./min./range measurement, inch/metric conversion, absolute/incremental measurement
• Battery CR2032, automatic power off
• Data output

Features at a glance

• With analog reading
• Lug back
• Resolution: 0.01mm/0.0005'
• Buttons: tolerance set, data preset, inch/mm conversion, measuring direction set, max./min./range measurement, absolute/incremental measurement
• Data output

Technical parameters:

Description	Spec
Measurement range:	12,7mm | 0.5'
Resolution:	0,01 mm / 0.0005 '
Accuracy:	±0,02mm
Back:	Lug
ABS function:	YES
On / Off button:	YES
Automatic shutdown:	YES
Tolerance set:	YES
in/mm conversion:	YES
Data output socket:	YES

---

AC211-010-11Measuring/Marking > Indicators > Digital Indicators
